PLANET ECLIPSE GTEK M170R - Removing Grips

FIG-1
FIG-2
B
B
1
1
1
1
B
A
A
5/64
5/64
+
+
+
+
-
-
-
-
B
FIG-1
B
D
C
A
20 21
GTEK M170R GTEK M170R
TECHNICAL

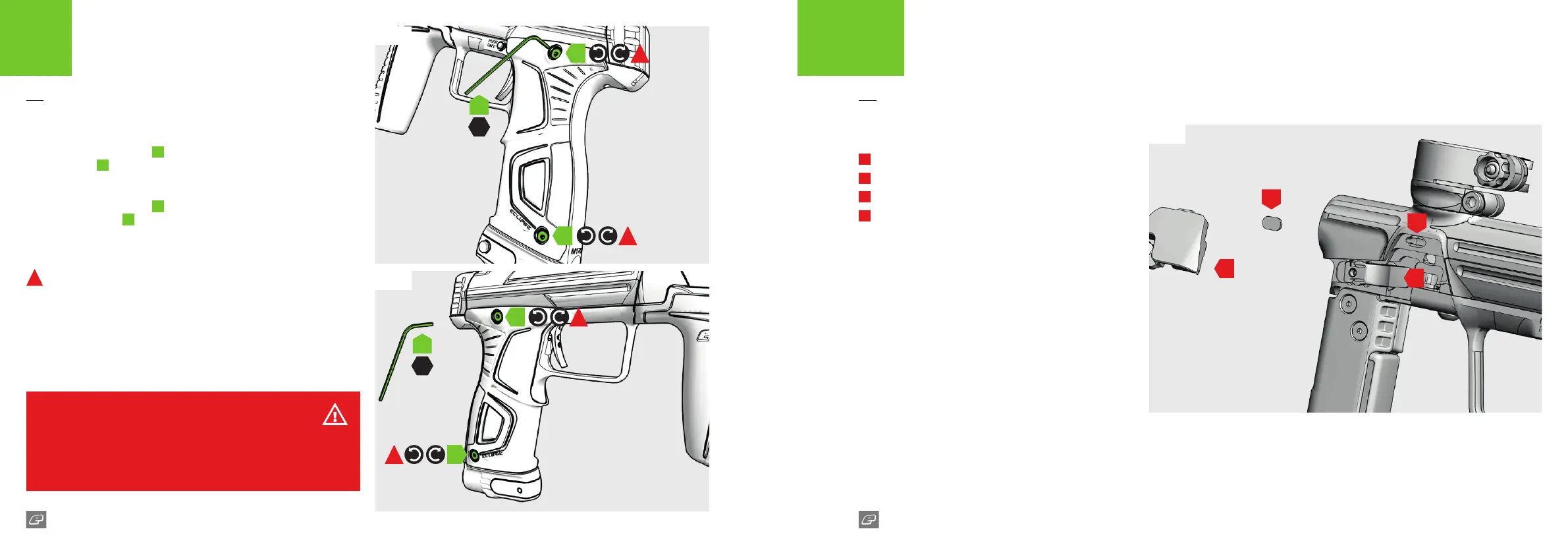

REMOVING GRIPS
FIG-1
Use a 5/64” (2mm) hex key
A
to remove the grip screws on the left hand
side of the grip
B
.
FIG-2
Use a 5/64” (2mm) hex key
A
to remove the grip screws on the right
hand side of the grip
B
.
Simply reverse the process to replace the rubber grips and screws.
1
DO NOT over-tighten the screws.
WARNING!
Always make sure the marker is o with a barrel blocking device installed and
that no paintballs are in the M170R or loader.
Compressed air and nitrogen systems can be extremely dangerous if handled
or used incorrectly.
WARNING
TECHNICAL
DETENT COVER ASSEMBLY
FIG-1
A
Detent cover
B
Rubber detent
C
Detent cover latch
D
Detent seat
The elements within this diagram apply to
both sides of the marker.
