QUICK START

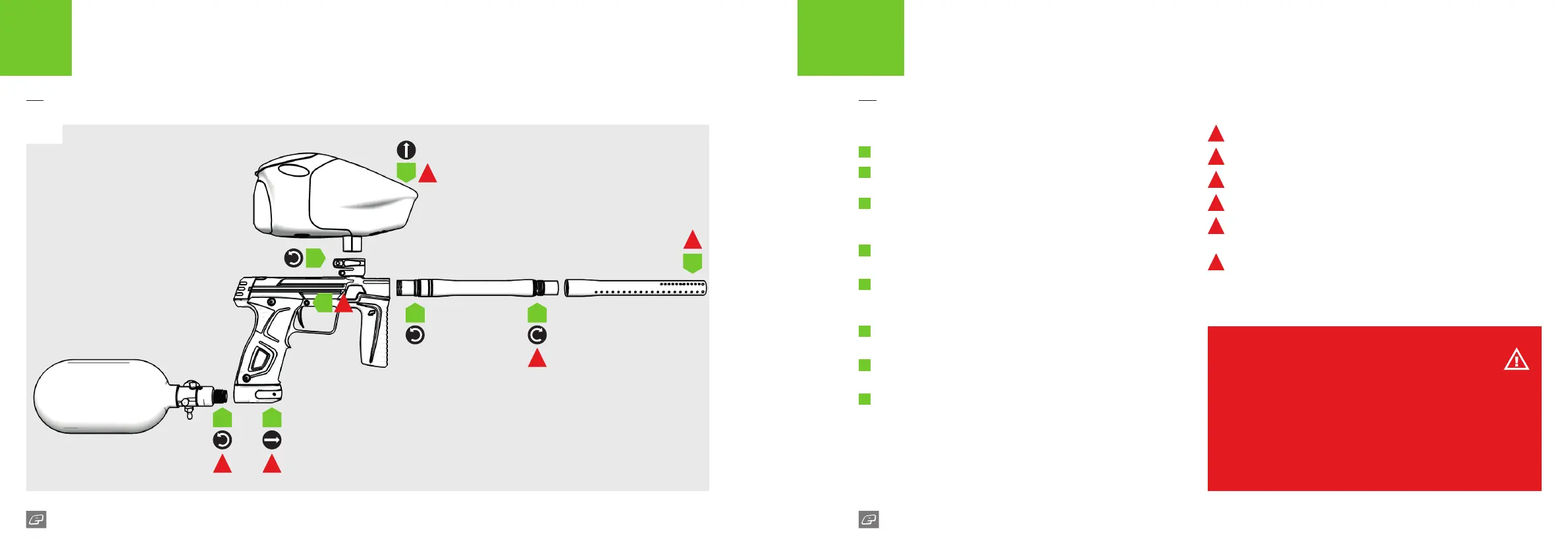

UNLOADING THE M170R
FIG-1
A
Ensure that a barrel blocking device is tted for safety.
B
PUSH SAFE before you begin.
This ensures the marker will not re when the trigger is pulled.
C
De-gas the marker.
Push in and hold the POPS button and pull the POPS bonnet
away from the POPS body.
D
Remove the pre-set air system.
Rotate the air system counter-clockwise from the POPS body.
E
Loosen the clamping feedneck.
Open the feedneck lever away from the feedneck.
Rotate the feedneck lever screw counter-clockwise.
F
Remove the loader.
If the feedneck is too tight, loosen the clamping feedneck more.
G
Remove the barrel from the marker body.
Rotate the barrel counter-clockwise to remove.
H
Remove the barrel tip from barrel back.
Rotate the barrel tip clockwise to remove.
1
IMPORTANT! Extra precaution to avoid injury.
2
IMPORTANT! To operate Safety Button see pages 8-9.
3
IMPORTANT! Always de-gas before unloading.
4
IMPORTANT! Always remove air system before unloading.
5
IMPORTANT! Always remove any paintballs from the breech of the
marker once the loader has been removed.
6
IMPORTANT! Rotate the barrel tip CLOCKWISE to remove.
QUICK START
UNLOADING THE M170R
WARNING!
Always make sure the marker is o with a barrel blocking device installed and
that no paintballs are in the M170R or loader before unloading.
Compressed air and nitrogen systems can be extremely dangerous if handled
or used incorrectly.
NEVER leave the M170R gassed up when unloading.
NEVER point your marker in the direction of other people when not on the eld.
Remove any paintballs from the breech before storing your M170R.
