QUICK START

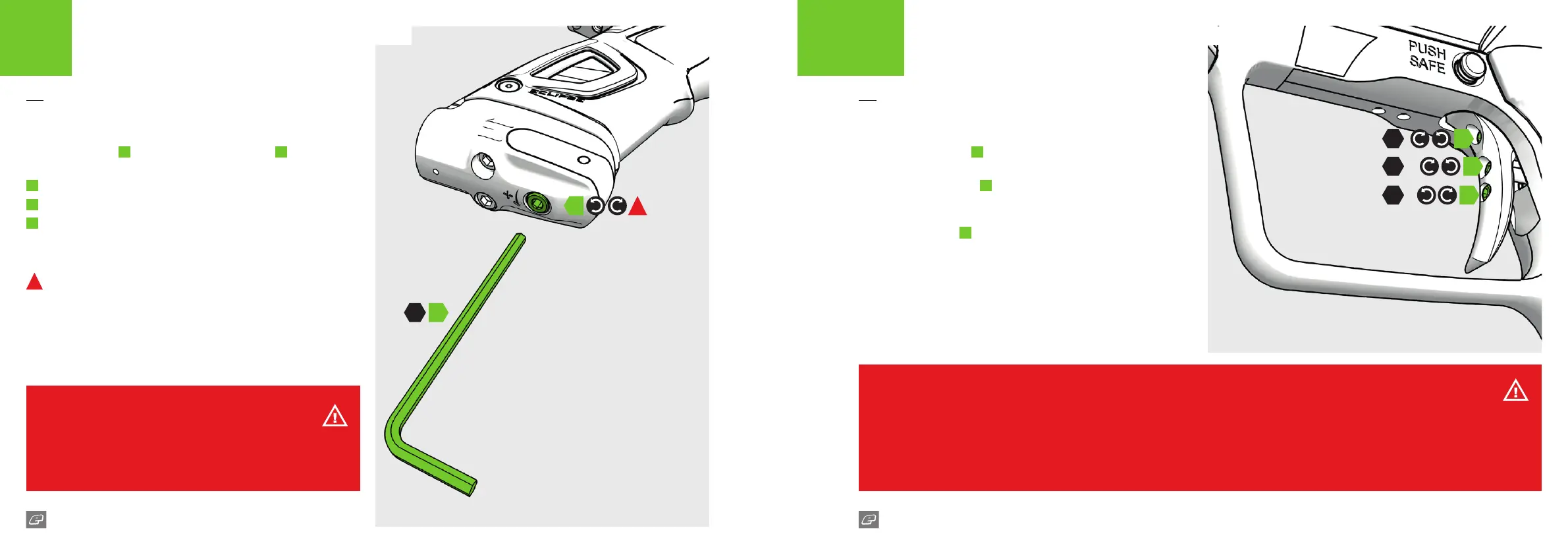

VELOCITY ADJUSTMENT
FIG-1
Insert a 1/8 hex key
A
into the velocity adjuster screw
B
to alter the
velocity of the M170R.
1
Turn the hex key clockwise to reduce velocity.
2
Turn the hex key counter-clockwise to increase velocity.
3
Fire two clearing shots after each velocity adjustment for an
accurate velocity reading.
1
DO NOT turn the adjuster screw in too far. This will prevent the
M170R from ring.
WARNING!
DO NOT exceed 300FPS.
Always wear correct protective equipment when ring your marker.
NEVER point your marker in the direction of other people when not on the eld.
WARNING
QUICK START
TRIGGER ADJUSTMENT
FIG-1
The trigger spring screw
A
adjusts the spring strength of the trigger
return. Clockwise increases strength, counter-clockwise reduces it.
The activation point screw
B
sets the three-way actuation point.
Clockwise advances the actuation point in the trigger pull, counter-
clockwise delays the activation point in the trigger pull.
The post-travel screw
C
adjusts the distance the trigger travels once
the trigger has been actuated. Clockwise reduces the amount of
travel, counter-clockwise increases the amount of travel.
WARNING!
Always make sure the marker is OFF and de-gassed with a barrel blocking device installed and no paintballs are in the marker or loader before adjusting the trigger.
The M170R trigger has a large range of adjustability and must be adjusted with care. Adjustment of the trigger screws to the extremes of their range and incorrect adjustment may
prevent the safety switch from functioning correctly.
If the safety switch cannot be engaged or disengaged, adjust the pre-travel screw to allow more pre-travel in the trigger until the safety switch operates freely.
If the marker can be red while the switch is set to safe, the activation-point screw needs adjusting. Turn the screw counter-clockwise to delay the activation point in the trigger pull
until the marker does not re with set to safe.
WARNING
