PLANET ECLIPSE GTEK M170R - SL6 Inline Regulator; M170 R Bolt Assembly

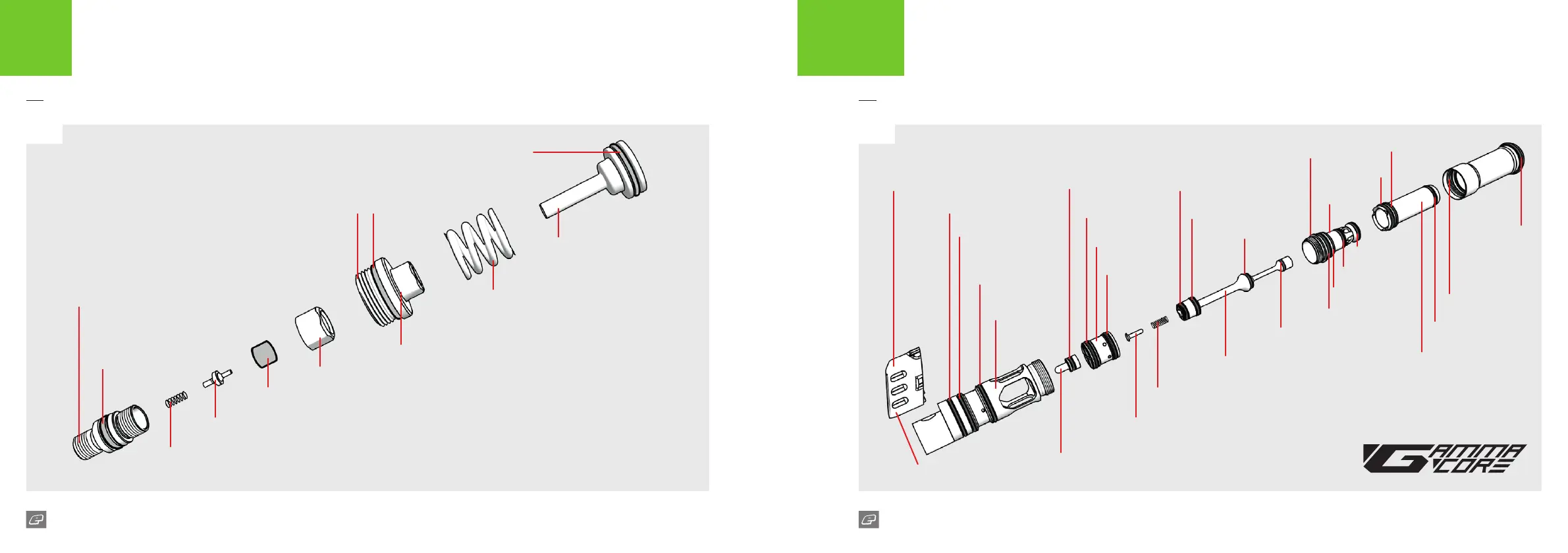

FIG-1 FIG-1
Adjuster bottom
Purge poppet spring
Purge poppet
3
Regulator seal
Adjuster top
Internal o-ring
#008 NBR70
Regulator spring
2
Regulator piston
Piston o-ring
14 x 2 NBR70
1 Reset the SL6 regulator to factory after re-assembly.
2 Only use the M170R SL6 spring with the SL6 inline regulator.
3 Failure to re-install the purge poppet assembly correctly could
seriously damage the M170R.
Adjuster o-ring
#011 NBR70
O-ring
#015 NBR70
Reg body
Quick-release bonnet
#010 NBR70
#012 NBR70
Bolt guide
#014 NBR70
#015 NBR90
14 x 2 NBR70
#016 NBR70
#012 NBR70
#011 NBR70
Switch
#016 NBR70
#020 NBR70
#020 NBR70
#020 NBR70
Valve chamber
Bolt pin
Plunger
Bolt
#013 NBR70
Can
#020 NBR70
Internal:
#017 NBR70
Spring guide
Spool spring
Spool
#008 NBR70
14 x 2 NBR70
#013 NBR70
#013 NBR70
#013 NBR70
22 23
GTEK M170R GTEK M170R
TECHNICAL
SL6 INLINE REGULATOR
1
TECHNICAL
M170R BOLT ASSEMBLY
