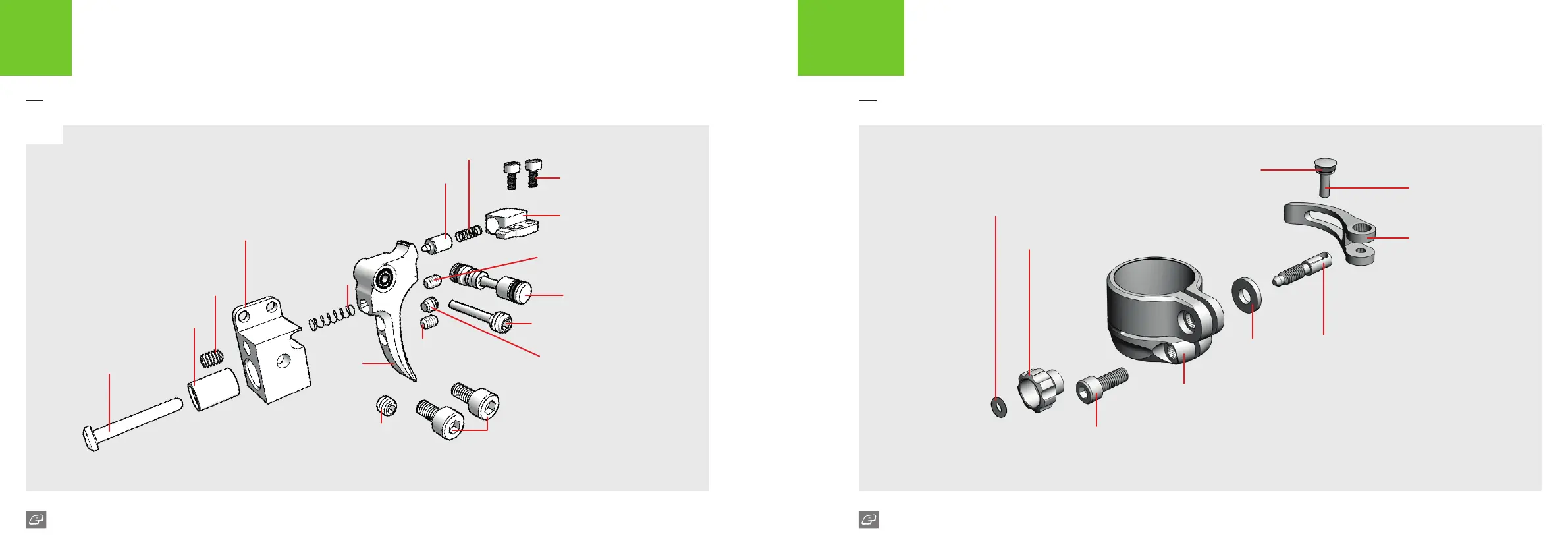

PLANET ECLIPSE GTEK M170R - Trigger Assembly; Low-Rise Feed Assembly

Clamping feed nut o-ring
#006 NBR70
Clamping feed nut Feed lever
Feed swivel
Feed swivel o-ring
#004 NBR70
Short clamping feed screw
10-32 UNF x 1/2”
Feed tube
Machined
clamping
feed screw
Feed
insert
FIG-1
Trigger
Safety switch spring
Safety switch plunger
Threaded trigger pin
Push button safety
Bearing retainer screw
6-32 UNC x 1/8
socket set screw
Post-travel screw
6-32 UNC x 3/16
socket set screw
Activation point adjuster screw
custom socket set screw
Trigger spring screw
6-32 UNC x 3/16
socket set screw
Trigger return spring
Bearing carrier
Push pin bearing
Trigger spring holder screw
6-32 UNC x 3/16
socket set screw
Push pin
Bearing carrier screws
M2.5 x 5 cap head socket screws
Safety switch
housing screws
M2.5 x 5 cap head
socket screws
Safety switch housing
26 27
GTEK M170R GTEK M170R
TECHNICAL
TRIGGER ASSEMBLY
TECHNICAL
LOW-RISE FEED ASSEMBLY
