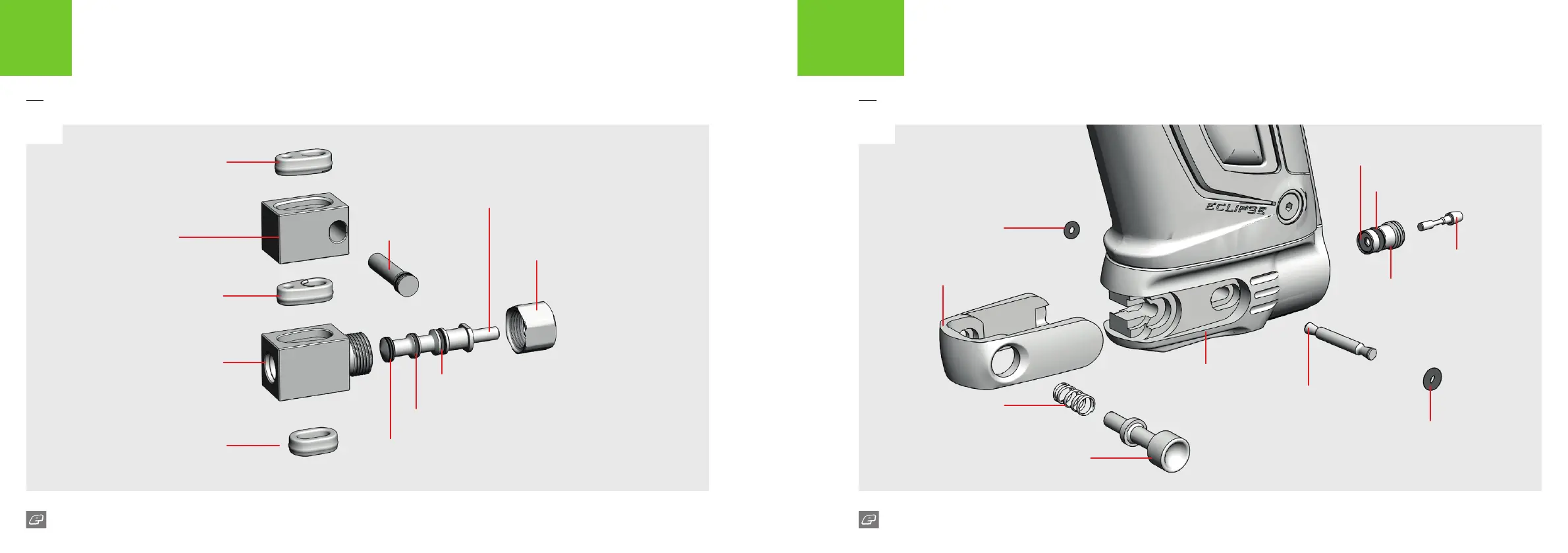

PLANET ECLIPSE GTEK M170R - Three-Way Assembly; Push on Purge System (POPS) Assembly

FIG-1 FIG-1
POPS bonnet
#004 NBR70
Latch spring
POPS button
#004 NBR70
Push rod
#007 NBR70
#005 NBR90
internal o-ring
POPS pin
POPS insert
POPS body
Three-way valve body
Three-way valve gasket
Transfer block
Three-way valve gasket
Three-way valve gasket
Three-way valve cap
Three-way valve spool
Three-way pin
#6 Seal (custom)
#6 Seal (custom)
4 x 1 NBR70
24 25
GTEK M170R GTEK M170R
TECHNICAL
THREE-WAY ASSEMBLY
TECHNICAL
PUSH ON PURGE SYSTEM (POPS) ASSEMBLY
