Chapter 6
Installing the Converter

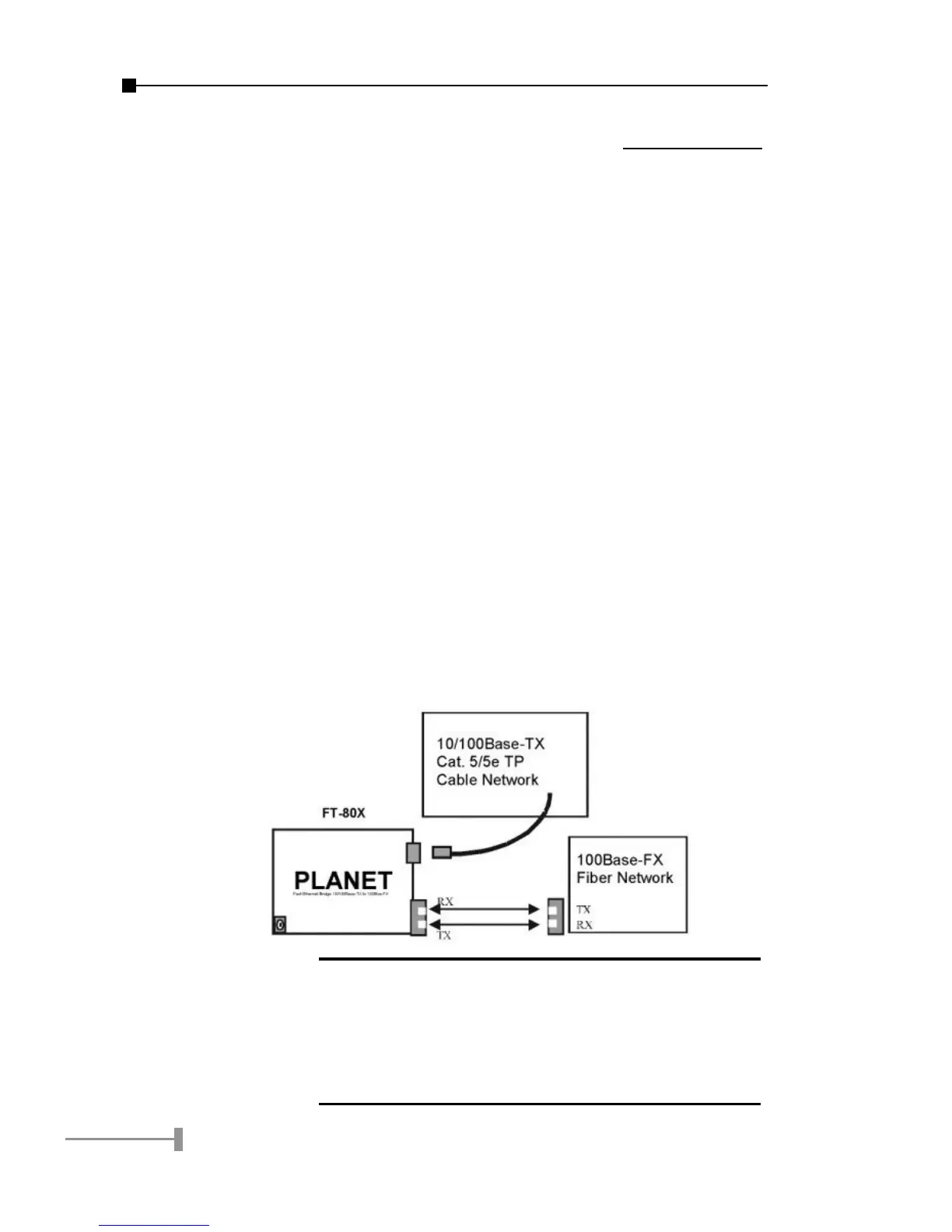

Please follow these steps to install the converter:
• Turn off the power of the device/station in a network to
which the FT-80X will be attached
• Ensure that there is no activity in the network
• Attach fiber cable from the FT-80X to the fiber network.
TX, RX must be paired at both ends
• Attach a Cat. 5 UTP cable from the 10/100Base-TX net-
work to the RJ-45 port on the FT-80X.
• Connect the 5VDC power adapter to the FT-80X and
verify that the Power LED lights up.
• Turn on the power of the device/station, the TX Link and
FX Link LEDs should light when all cables are attached
• Turn on the power of the device/station, the TX Link and
FX Link LEDs should light when all cables are attached
NOTE:
• RJ-45/STP, UTP Cat 5, straight/crossover
cable is accepted
• Please refer to section 8 for more about
the wiring distance of your TP, Optic-ber
networks.
