Planet GSD-1022UP User Manual

4
2. Hardware Introduction

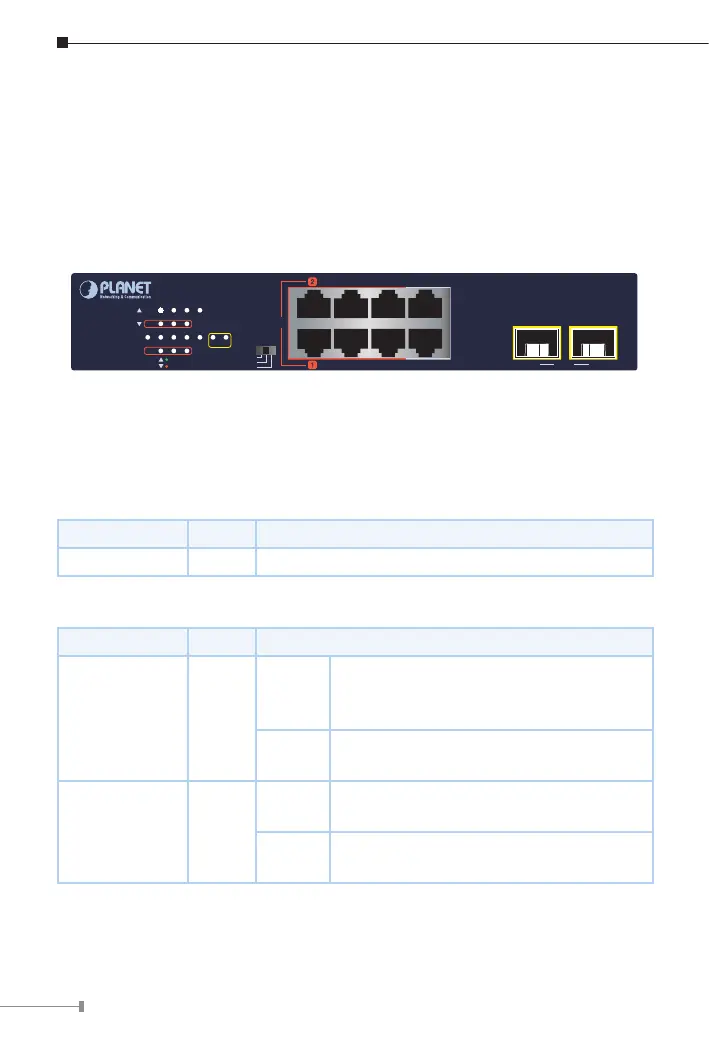

2.1 Front Panel
The Front Panel of the GSD-1022UP consists of 2-Port 10/100/1000T
802.3bt PoE, 4-Port 10/100/1000T 802.3at PoE, 2-Port 10/100/1000T
and 2-Port 1000X SFP. The LED Indicators are also located on the front
panel of the GSD-1022UP as shown in Figure 2-1.
4 6 82
1 3 5 7
1
PWR
53 7
2 6
4 8
109
PoE
PoE
GSD-1022UP
PoE-in-Use
LNK/ACT
Legacy
BT
UPoE
9 10
Uplink
1000X1000X
PoE++
Figure 2-1: GSD-1022UP Front Panel
2.2 LED Indicators
 System
LED Color Function
PWR Green Lights to indicate that the Switch has power.
 PoE 10/100/1000BASE-T Interfaces (Port-1 to Port-6)
LED Color Function
10/100/1000
LNK/ACT
Green
Lights:
To indicate the link through that
port is successfully established at
10/100/1000Mbps.
Blinks:
To indicate that the switch is actively
sending or receiving data over that port.
PoE-in-Use Amber
Lights:
To indicate the port is providing PoE
in-line power.
O:
To indicate the connected device is not a
PoE powered device (PD)
