3.3 Wall Mounting
Step 1: PleasendthewallthatcanmounttheGSD-1022UP.
Step 2: Install two screws on the wall.
Step 3: Hang the GSD-1022UP on the screws from the wall, as shown in
Figure 3-4.
Step 4: Proceed with Steps 4 and 5 of Desktop Installation to connect the
network cabling and supply power to the GSD-1022UP.
Before mounting the device to the wall, please check the loca-
tion of the electrical outlet and the length of the Ethernet cable.
150mm
RJ45
UTP Cable
100-240V AC
50/60Hz, 1.5A

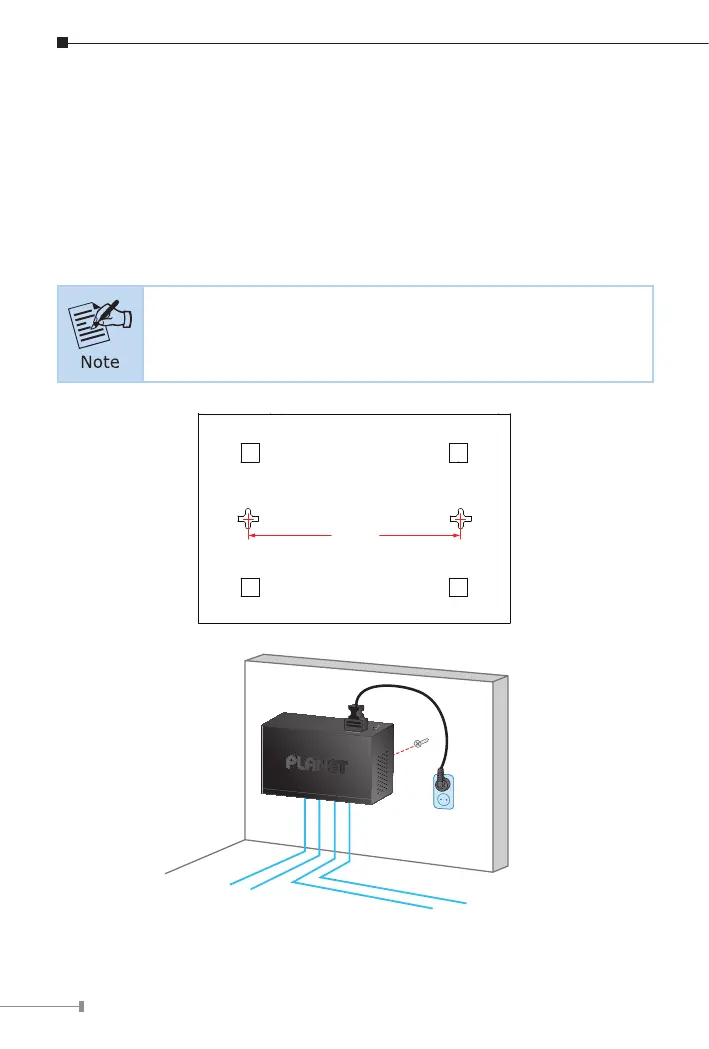

Figure 3-4: Hang the GSD-1022UP on the wall
