3. Hardware Installation
This part describes how to install the GSD-1022UP and make connections to it.
Please follow the procedure below:
This GSD-1022UP does not need software configuration.
3.1 Desktop Installation
To install the GSD-1022UP on the desktop, simply follow these steps:
Step 1: Attach the rubber feet to the recessed areas on the bottom of the
GSD-1022UP as shown in Figure 3-1.
4 6 82
1
3 5 7
1
PWR
53 7
2 6
4 8
109
PoE
PoE
GSD-1022UP
PoE-in-Use
LNK/ACT
Legacy
BT
UPoE
9 10
Uplink
1000X1000X
PoE++

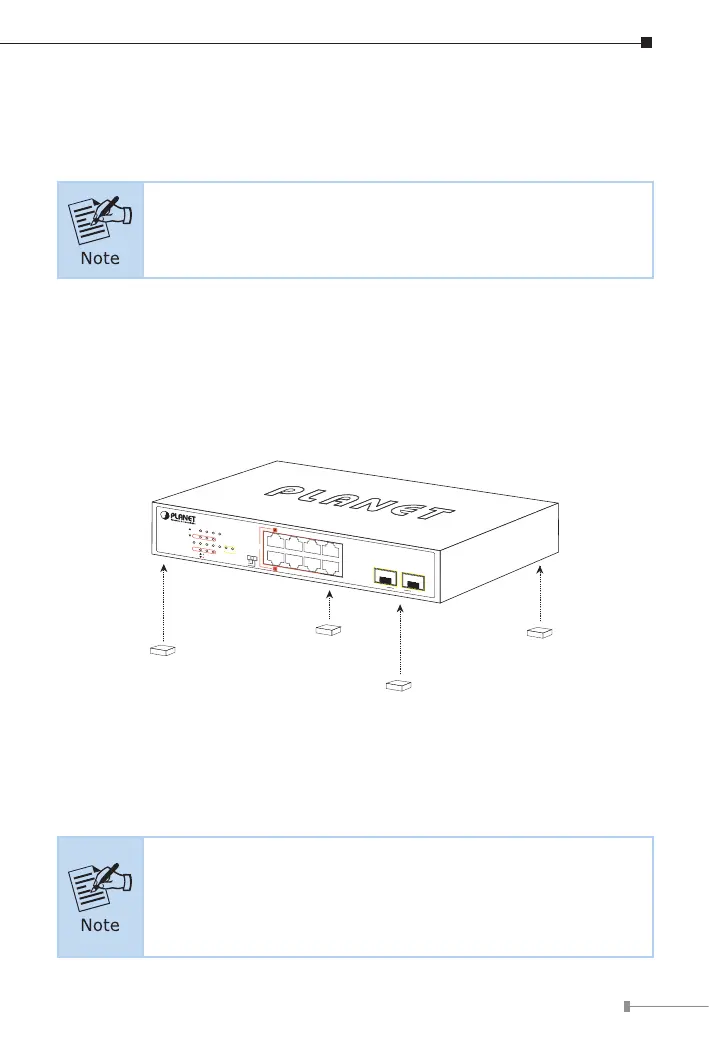

Figure 3-1: Attach the rubber feet to GSD-1022UP
Step 2: Place the GSD-1022UP on the desktop near an AC power source.
Step 3: Keep enough ventilation space between the GSD-1022UP and the
surrounding objects.
When choosing a location, please keep in mind the environ-
mental restrictions discussed in Section 4 under Product Speci-
fications.
