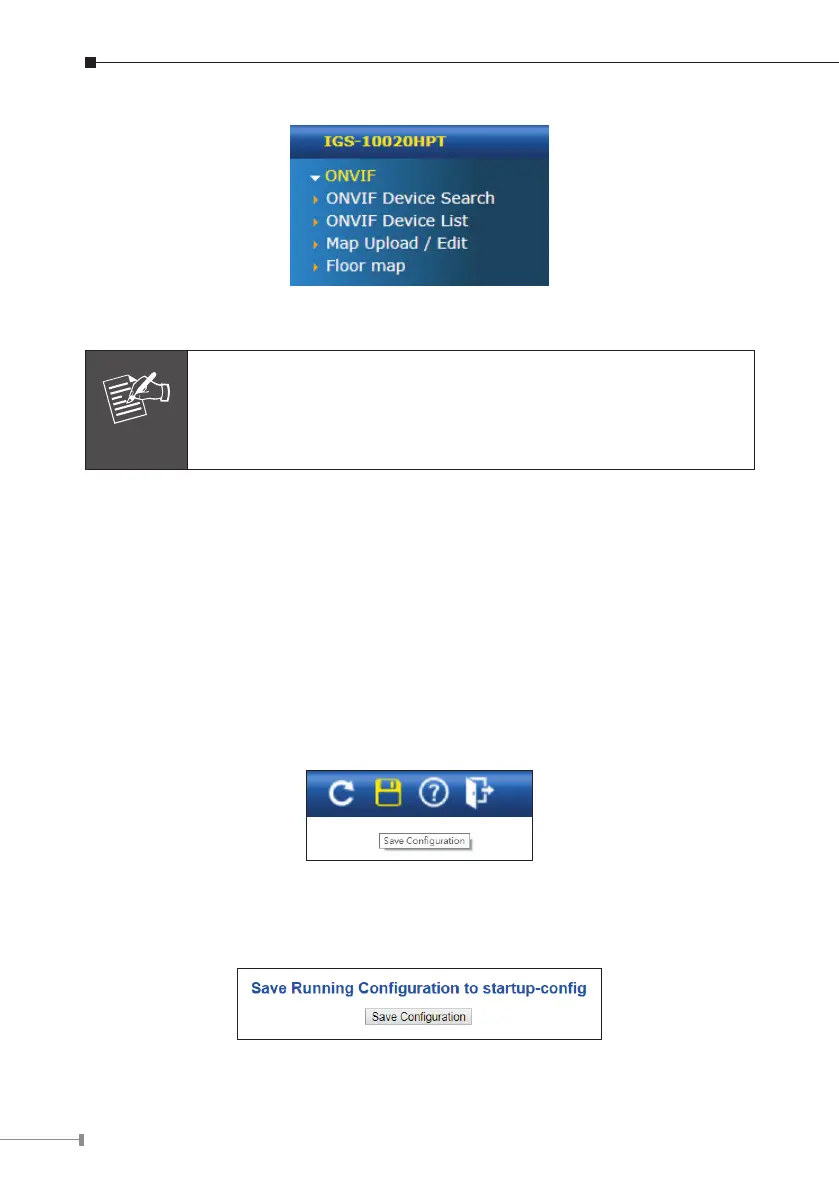

Figure 5-12: Switch Menu – ONVIF
Note
If you are not familiar with Switch functions or the related param-
eter, press “Help icon” anytime on the Web page to get the help
description.
Now, you can use the Web management interface to continue the Switch
management or manage the Switch by console interface.
Pleaserefertotheuser’smanualformore.
5.2.SavingConguration
To save all applied changes and set the current conguration as a startup
conguration on the Web user interface, the startup-conguration le will be
loadedautomaticallyacrossasystemreboot.
1. Click the Save icon on the top Switch Menu bar.
Figure 5-13: Save Cong -- Hot Key
2. Press the “SaveConguration” button.

Planet IGS-10020PT Specifications

General

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Multicast support	No
Console port	RJ-45
Fiber optic connector	MiniGBIC
SFP module slots quantity	2
Installed SFP+ modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Number of VLANs	255
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Throughput	14.8 Mpps
MAC address table	8000 entries
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Stackable	-
Certification	FCC Part 15 Class A, CE
Product color	Blue, White
Housing material	Aluminum
International Protection (IP) code	IP30
Total Power over Ethernet (PoE) budget	240 W
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Power requirements	48VDC
Power consumption (max)	255 W
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	107.3 mm
Width	76.8 mm
Height	152 mm
Weight	1032 g
