Planet ISW-500T User Manual

11
[ISW-800T]

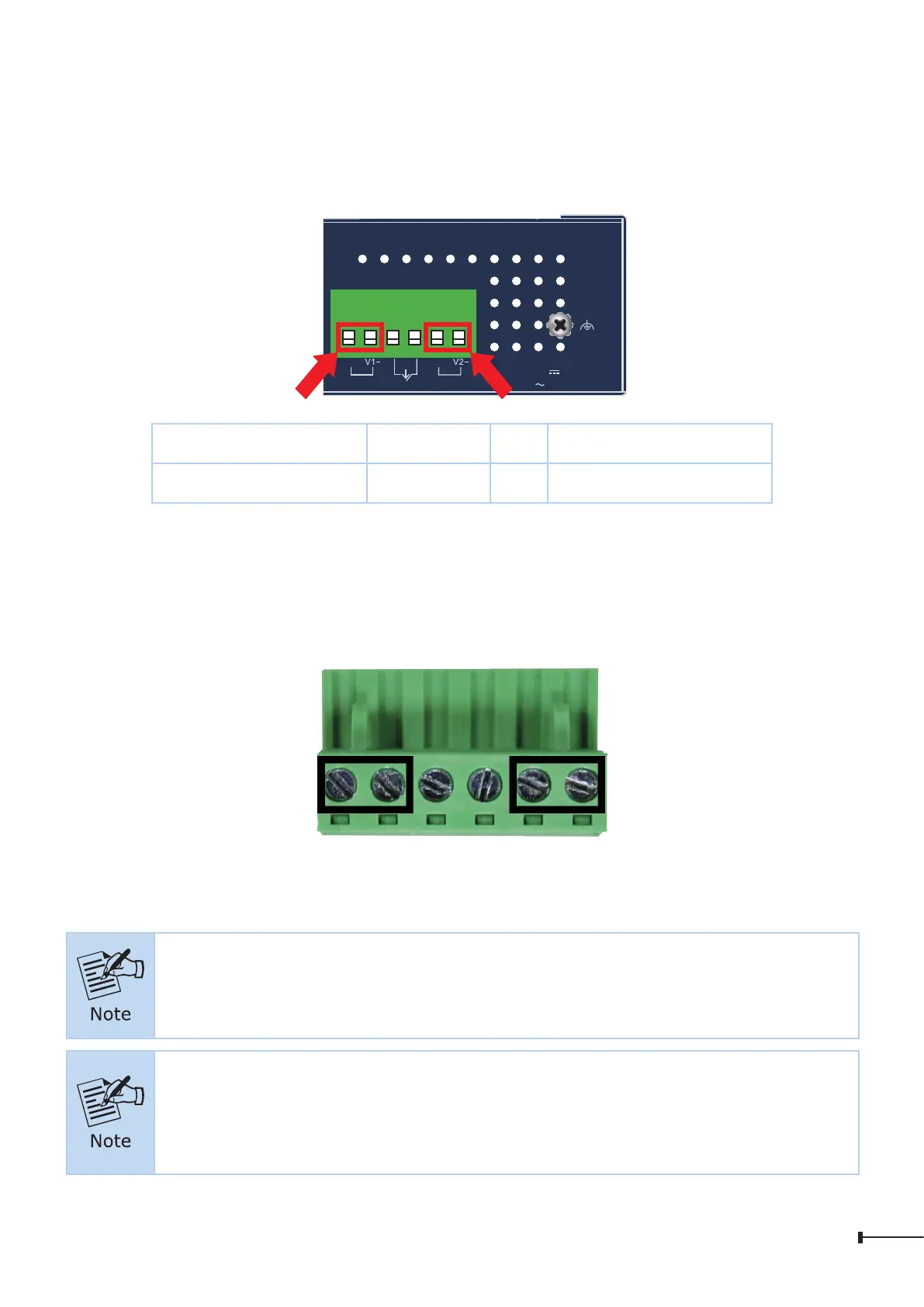

1. Insert positive and negative DC power wires into contacts 1 and 2 for POWER 1,
or contacts 5 and 6 for POWER.
Max. Fault Alarm Loading: 24V, 1A
DC Input: 12-48V
, 0.2A max.
AC Input: 24V
, 0.16A max.
Alarm
V1+ V2+
PWR2PWR1
1 2 3 4 5 6
Wire Range Wire Type FW Torque In-lbs (N.m)
12-24 AWG Str/Sol Cu 2 5 (0.56)
2. This product is intended to be supplied with a UL-listed power adapter or power
source, rated 24V AC, 50/60Hz min. 0.16A or 12-48V DC, min. 0.2A, and Tma
75°C (max.).
3. Tighten the wire-clamp screws for preventing the wires from loosening.
1 2 3 4 5 6
Power 1 Alarm Power 2
+ - + -
1. The power input range is 12V ~ 48V DC and supports 24V AC.
2. Use one power input when using 24V AC.
1. La plage d’entrée d’alimentation est de 12V ~ 48V DC et prend en
charge 24V AC.
2. Utilisez une entrée d’alimentation lorsque vous utilisez 24V AC.
