2.2 Mounting Installation
This section describes how to install the Industrial M12 Ethernet Switch and make
connections to it. Please read the following topics and perform the procedures in
the order being presented.
2.2.1 DIN-Rail Mounting
The DIN-Rail is screwed on the Industrial M12 Ethernet Switch when out of factory.
When need to replace the wall mount application with DIN-Rail application on
Industrial M12 Ethernet Switch, please refer to following gures to screw the DIN-
Rail on the Industrial M12 Ethernet Switch. To hang the Industrial M12 Ethernet
Switch, follow the below steps:

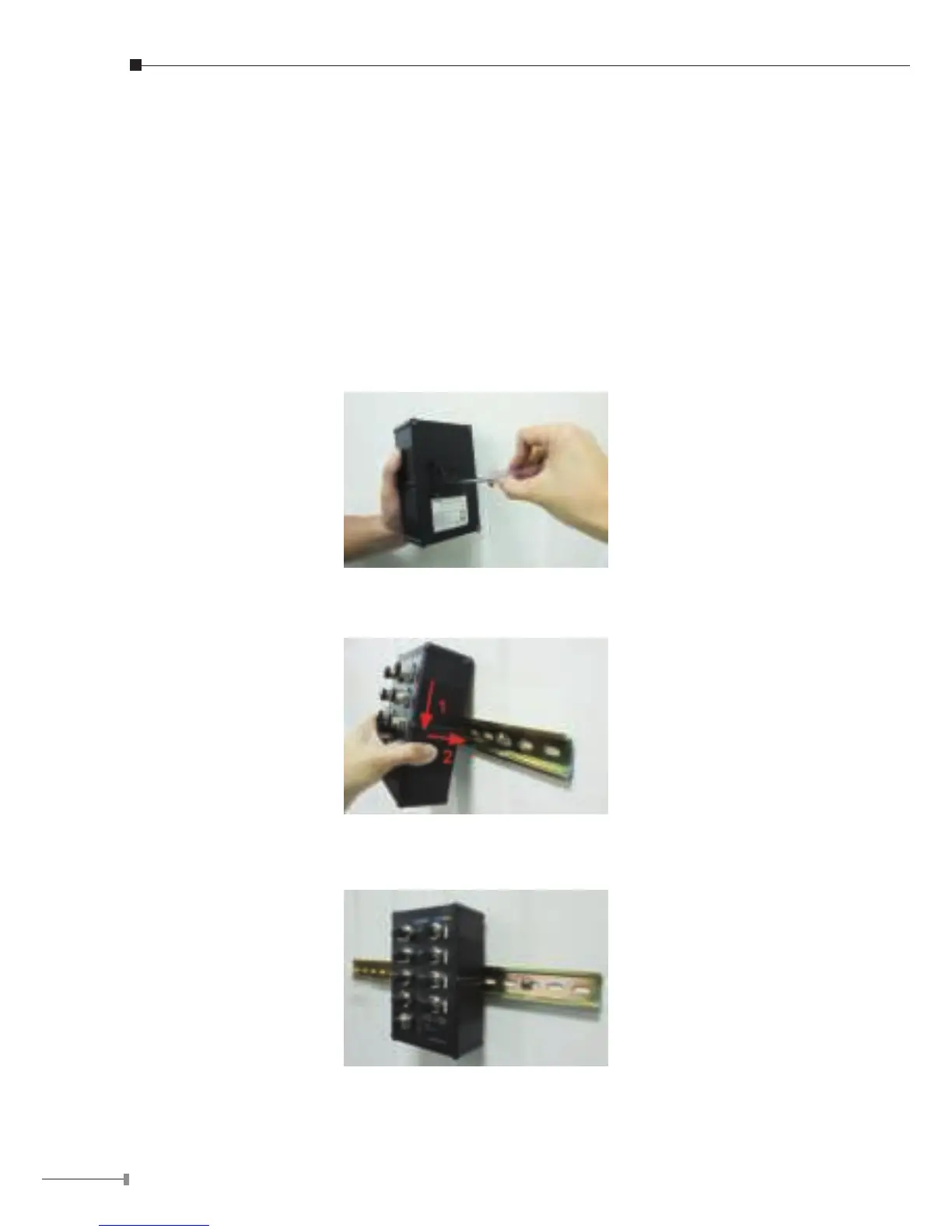

Step 1: Screw the DIN-Rail on the Industrial M12 Ethernet Switch.
Step 2: Lightly press the button of DIN-Rail into the track.
Step 3: Check the DIN-Rail is tightly on the track.
