Planet ISW-800T-M12 - Wall Mount Plate Mounting

17

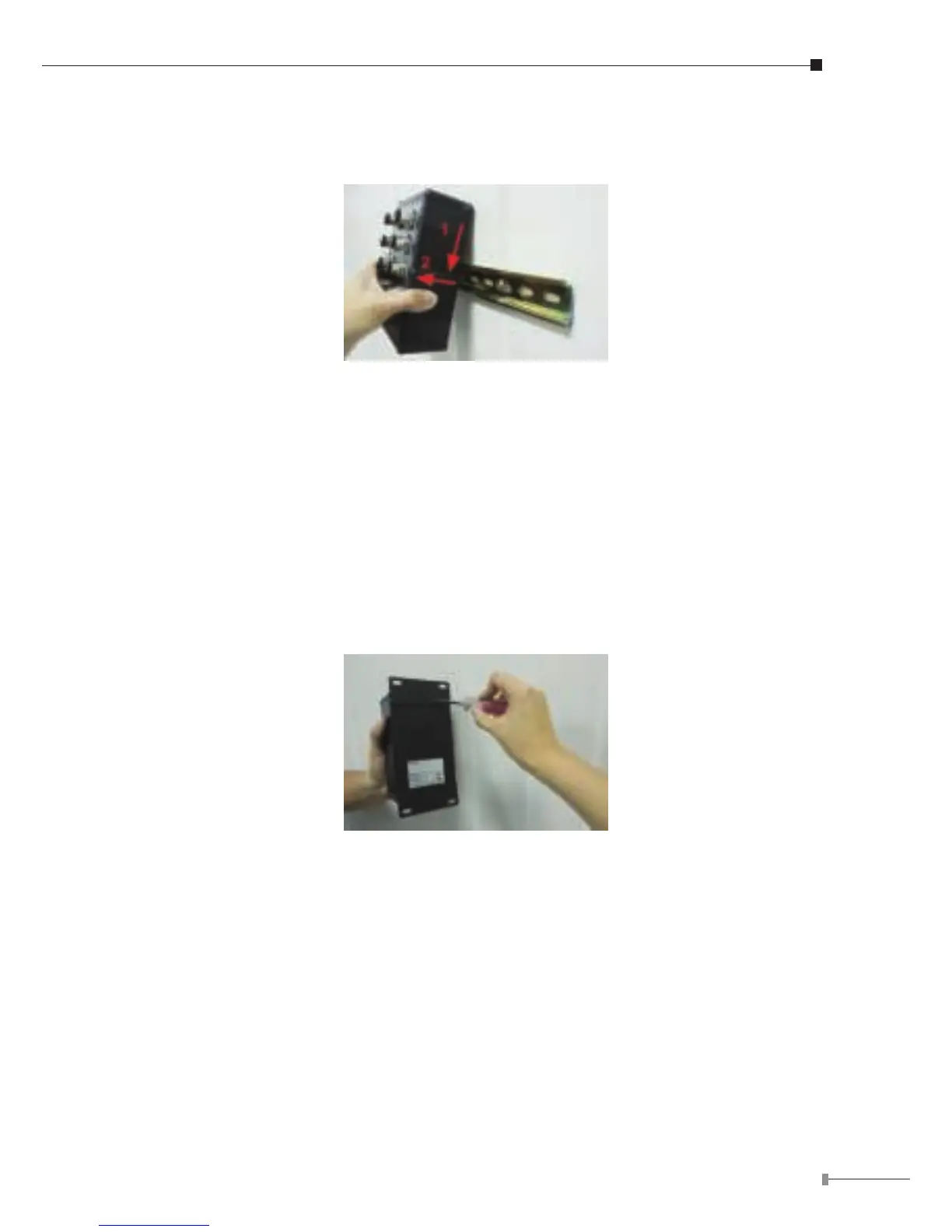

Step 4: Please refer to following procedures to remove the Industrial M12 Ethernet
Switch from the track.
Step 5: Lightly press the button of DIN-Rail for remove it from the track.
2.2.2 Wall Mount Plate Mounting
To install the Industrial M12 Ethernet Switch on the wall, please follows the
instructions described below.
Step 1: Remove the DIN-Rail from the Industrial M12 Ethernet Switch; loose the
screws to remove the DIN-Rail.
Step 2: Place the wall mount plate on the rear panel of the Industrial M12
Ethernet Switch.
Step 3: Use the screws to screw the wall mount plate on the Industrial M12
Ethernet Switch.
Step 4: Use the hook holes at the corners of the wall mount plate to hang the
Industrial M12 Ethernet Switch on the wall.
Step 5: To remove the wall mount plate, reverse steps above.
