Planet VC-203PT User Manual

17
CPE CO
VC-203PT VC-203PR
Power Input
Power adapter with
52~56V DC in
BNC with DC power over
coaxial input
Power Output
BNC with DC power over
coaxial output
DC Terminal block with
12V or 24V DC output
Caution
1. Please ensure the VC-203PR output voltage is correct
for remote device.
2. Please plug off the PoE Coaxial cable from VC-203PR
before switching off the Power Voltage DIP during
operation. Wait for 3 seconds until the “PoE IN” LED
is completely OFF. Otherwise, it might damage your
devices.

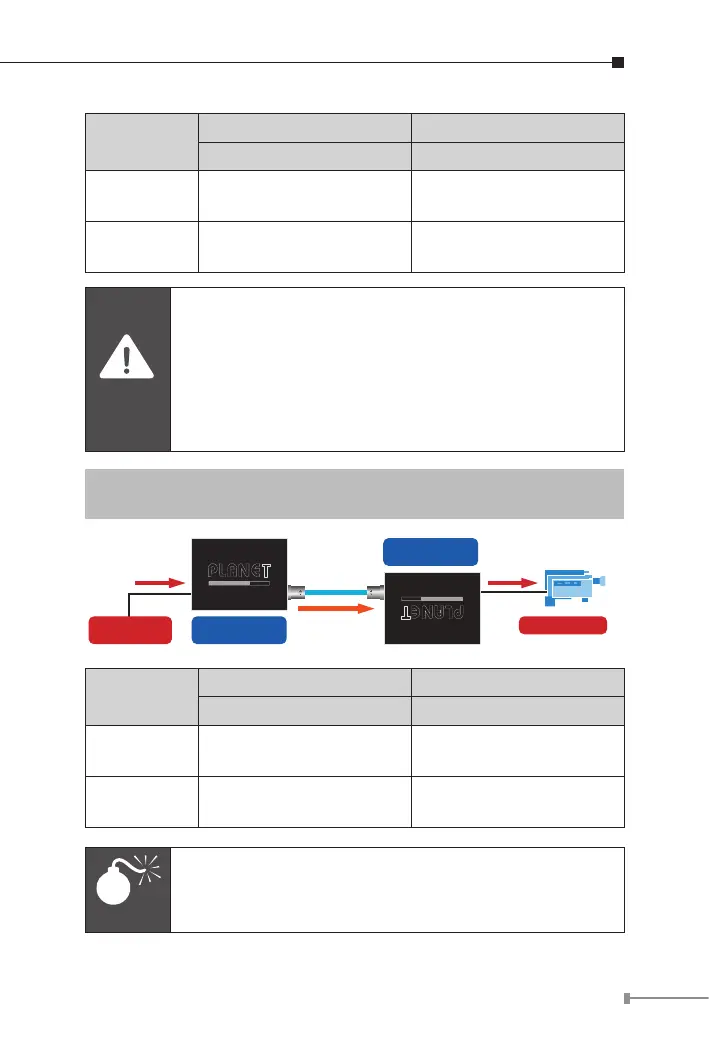

Type 3 – VC-203PT with PoE power input and VC-203PR with
PoE power output
VC-203PT
Transmitter / VDSL2 CPE
PoE IP Camera
802.3af / 802.3at
PoE Switch
VC-203PR
Receiver / VDSL2 CO
PoE
Power over Coaxial
802.3af / 802.3at
RJ-45
PoE
RJ-45
PoE ove r Coaxial Extender
Transmi tter
PoE over Coaxial Extender
Receiver
CPE CO
VC-203PT VC-203PR
Power Input
RJ-45 with 802.3at/af PoE
input
BNC with DC power over
coaxial input
Power Output
BNC with DC power over
coaxial output
RJ-45 with 802.3at/af PoE
output
Warning
The VC-203PT accepts IEEE 802.3at equipment for
optimal power injection. Any other Non-standard PoE
Power devices may cause the VC-203PT to malfunction.

Planet VC-203PT Specifications

General

Brand	Planet
Model	VC-203PT
Category	Extender
Language	English
