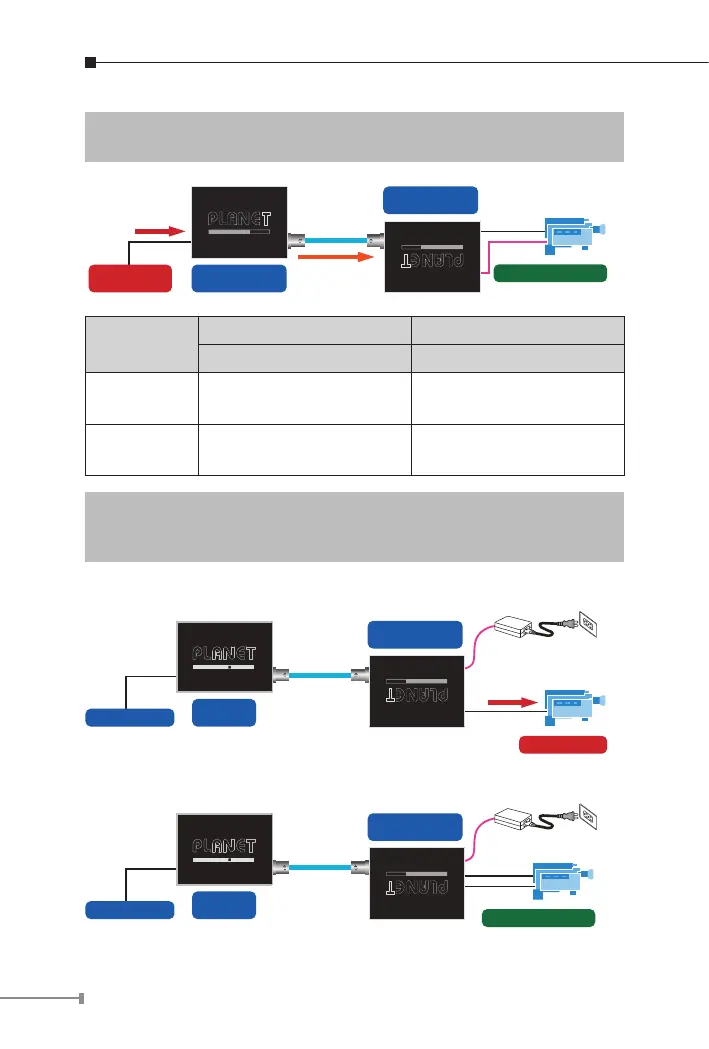

Type 4 – VC-203PT with PoE power input and VC-203PR with
DC power output
VC-203PT
Transmitter / VDSL2 CPE
802.3af / 802.3at
PoE Switch
VC-203PR
Receiver / VDSL2 CO
PoE
12V/24V DC
Power over Coaxial
RJ-45
Non-PoE IP Camera
RJ-45
PoE ove r Coaxial Extender
Transmi tter
PoE over Coaxial Extender
Receiver
CPE CO
VC-203PT VC-203PR
Power Input
RJ-45 with 802.3at/af PoE
input
BNC with DC power over
coaxial input
Power Output
BNC with DC power over
coaxial output
DC Terminal block with
12V or 24V DC output
Type 5 – PLANET VC-202A (does not support Power over
coaxial) with coaxial link to VC-203PR and VC-203PR get
external DC power input directly and RJ-45 with PoE output
VC-202A
VDSL2 CPE
VC-203PR
Receiver / VDSL2 CO
Coaxial Cable
RJ-45
AC-to-DC Adapter
60W/52~56V DC IN
12V/24V DC
Non-PoE IP Camera
RJ-45
PoE IP Camera
802.3af / 802.3at
PoE
RJ-45
Ethernet Switch
VC-202A
VDSL2 CPE
VC-203PR
Receiver / VDSL2 CO
Coaxial Cable
RJ-45
AC-to-DC Adapter
60W/52~56V DC IN
Ethernet Switch
PoE over Coaxial Extender
Receiver
Etherne t over VDS L 2 Converter
PoE over Coaxial Extender
Receiver
Etherne t over VDS L 2 Converter
