Planet WDRT-1202AC - Hardware Installation

User Manual of WDRT-1202AC
-9-
Chapter 2. Hardware Installation
Please follow the instructions below to connect the WDRT-1202AC to the existing network devices and your computers.
2.1 Hardware Description
 Dimensions: 250 x 185 x 38 mm (W x D x H)
 Diagram :

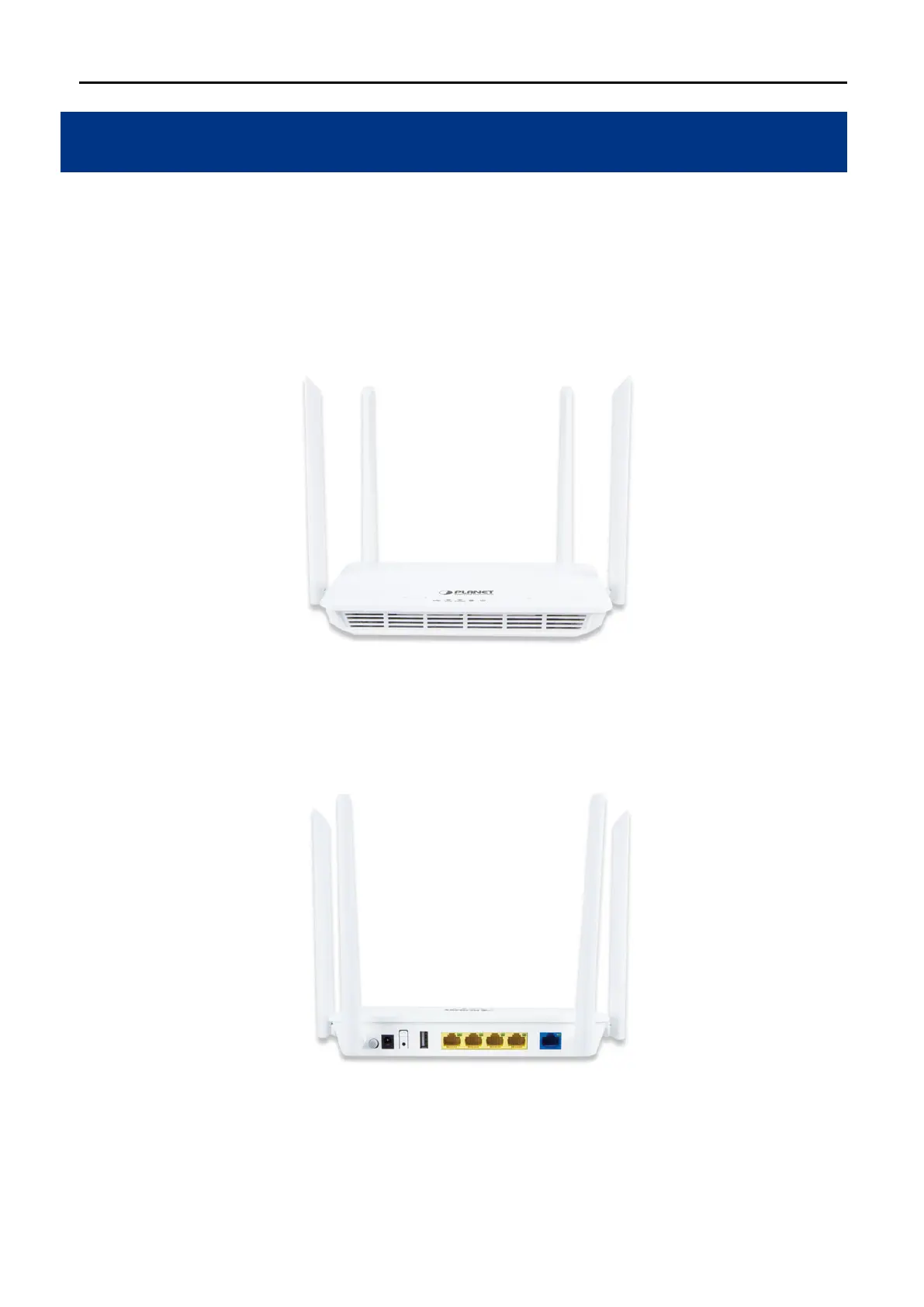

Figure 2-1
Figure 2-2
