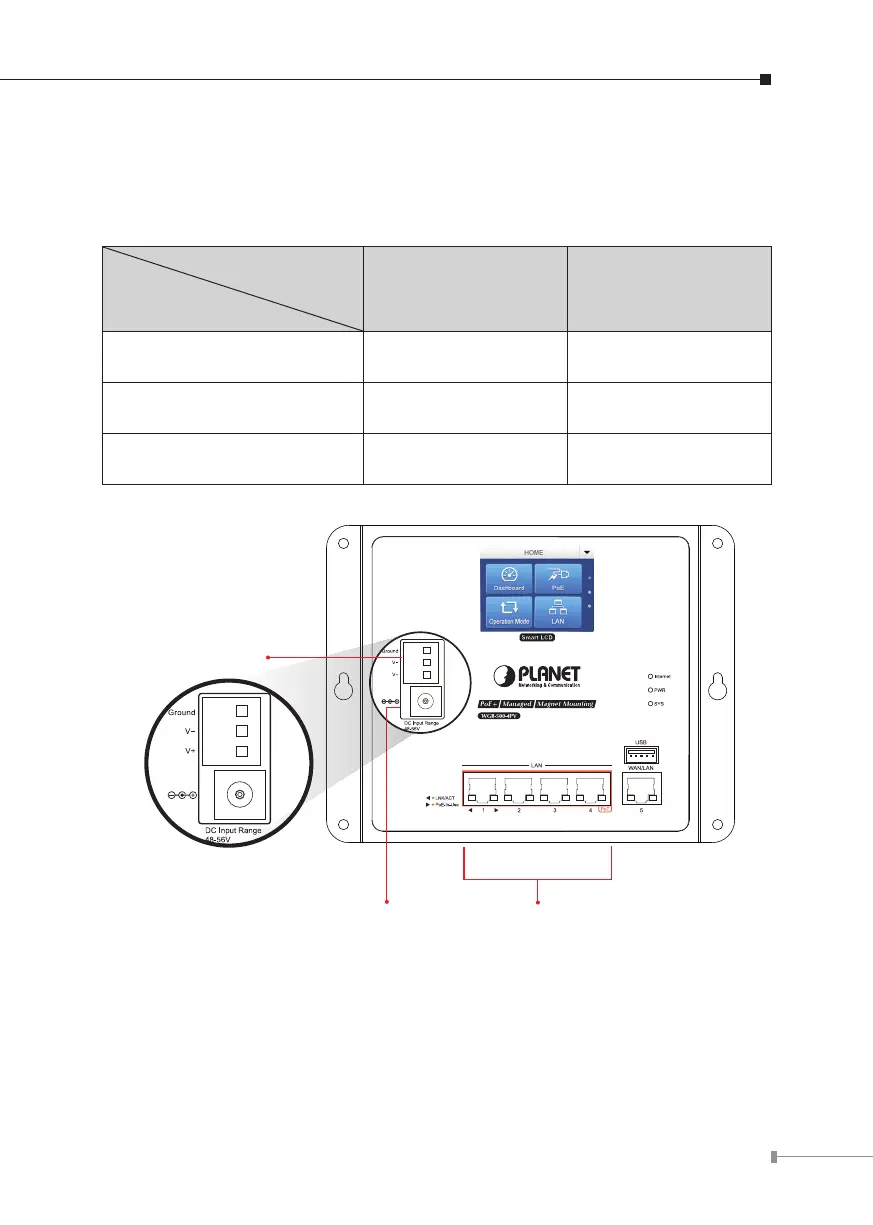

3. Wiring the Power Inputs
The Industrial Router features a strong dual power input system (Terminal block
and DC jack) incorporated into customer’s automation network to enhance system
reliability and uptime.
Power Input
Range
Model
3-pin Terminal Block DC Jack
WGR-500 12~48V DC 12~48V DC
WGR-500-4P 48~56V DC 48~56V DC
WGR-500-4PV 48~56V DC 48~56V DC
10/100/1000BASE-T RJ45 Ports
DC Plug-in
3-pin Terminal Block
