12

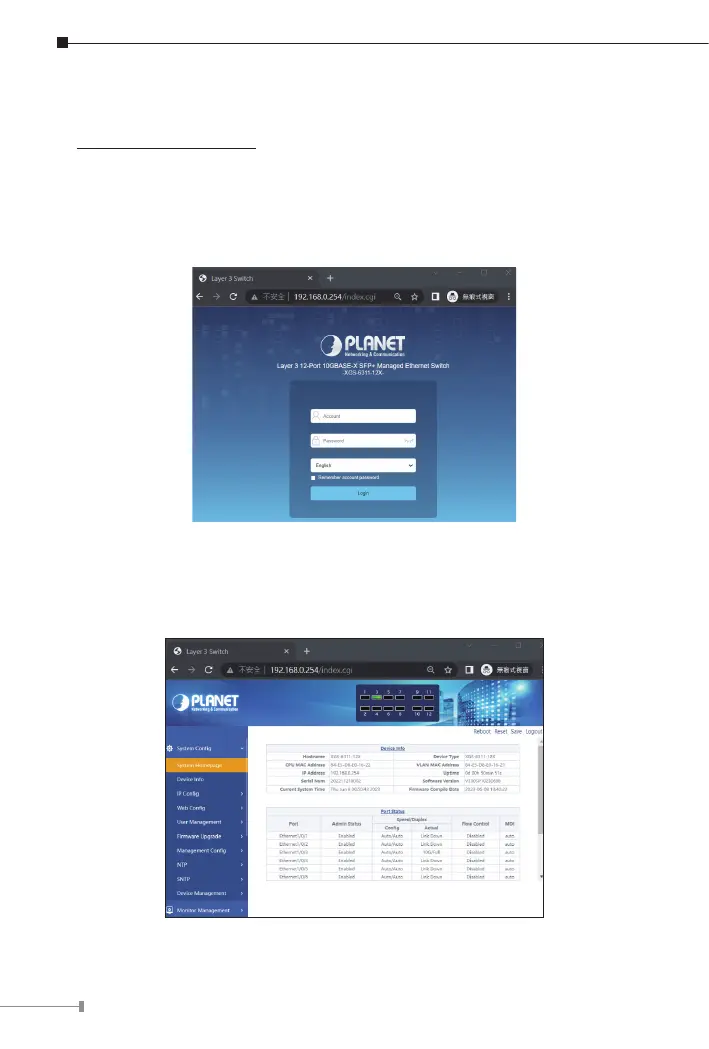

5.1 Logging in to the Managed Switch
1.Use Google Chrome or above Web browser and enter IP address
http://192.168.0.254 (that you have just set in console) to access the
Webinterface.
2.When the following dialog box appears, please enter the congured user-
name “admin” and password “admin” (or the username/password you
havechangedviaconsole).The loginscreeninFigure5-2appears.
Figure 5-2 Login Screen
3.After entering the password, the main screen appears as shown in Figure
5-3.
Figure 5-3 Web Main Screen of Managed Switch
