Planet XGS-6320-8UP4X User Manual

12

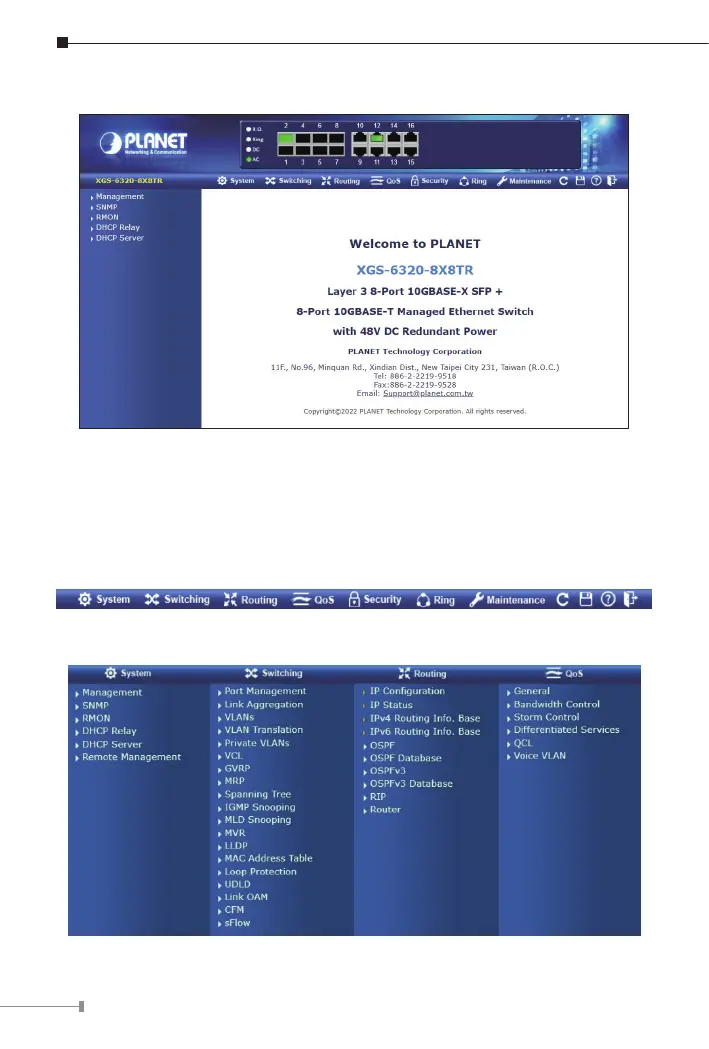

3.Afterenteringthepassword,themainscreenappearsasFigure4-3shows.
Figure 4-3: Web Main Screen of Managed Switch
The Switch Menu on the top of the Web page lets you access all the
commands and statistics the Managed Switch provides. The Switch Menu
always contains one or more buttons, such as “System”, “Switching”,
“Routing” “QoS”, “Security”, “Ring”and“Maintenance”.
Figure 4-4: Switch Menu
Figure 4-5: Switch Menu – System, Switching, Routing and QoS
