Plinius P100 - Front Panel Functions; Rear Panel Functions

PLINIUS P100 3

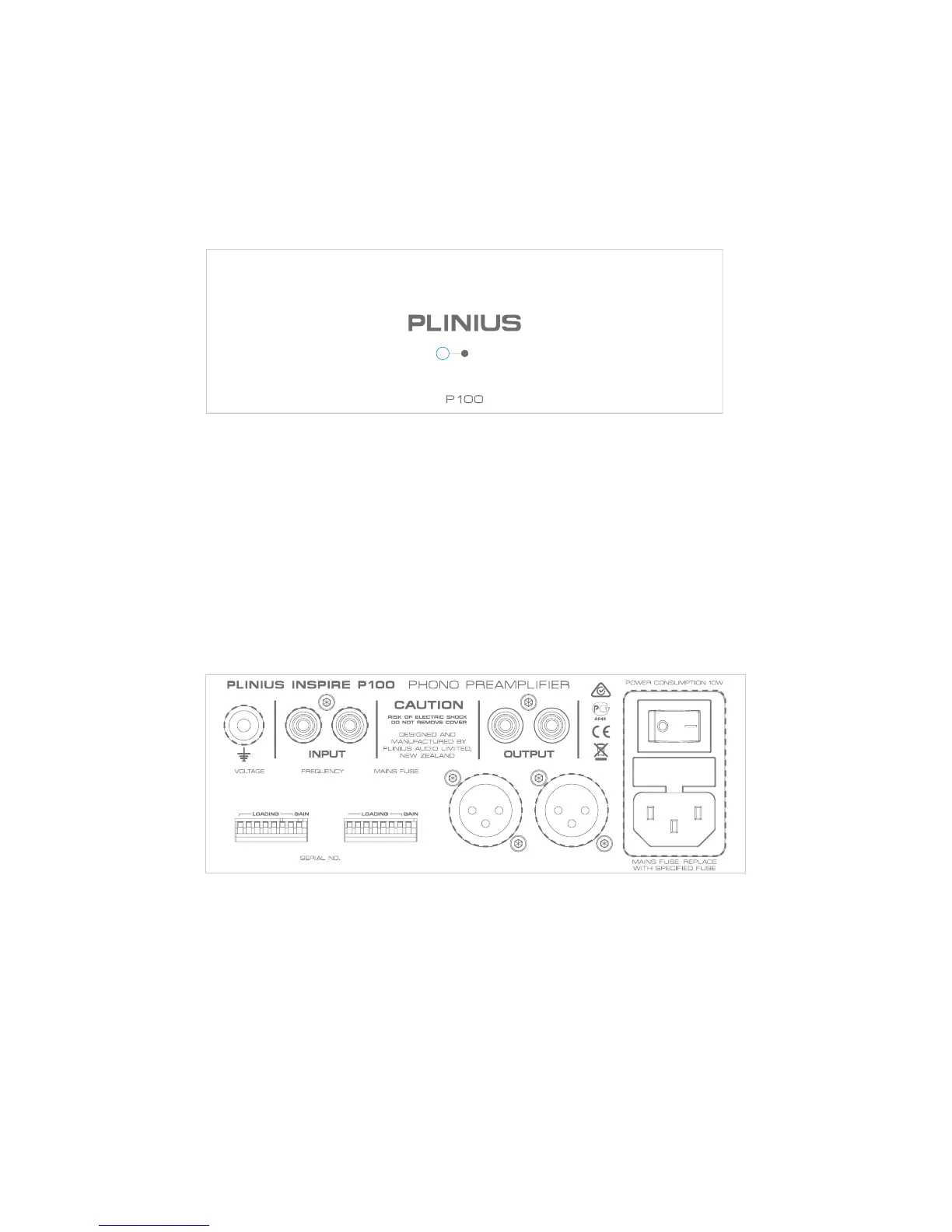

Front Panel Functions
1. DISPLAY LED
A LED on the front panel illuminates when the P100 is powered.
Rear Panel Functions
This panel incorporates terminals for connecting the input signal from your turntable,
outputs to the preamplier or integrated amplier, the loading and gain switches and
the mains supply.
Please remember that your Plinius P100 phono preamplier is a high quality electronic
instrument, capable of exceptional performance. Be sure you understand your system’s
requirements fully before making connections.
1. EARTH POST
This is a chassis connected, gold plated, earth post for use with most vinyl turntables.
2. INPUT TERMINALS
The input terminals of your P100 connect, via RCA cables, to your turntable.
1
