5

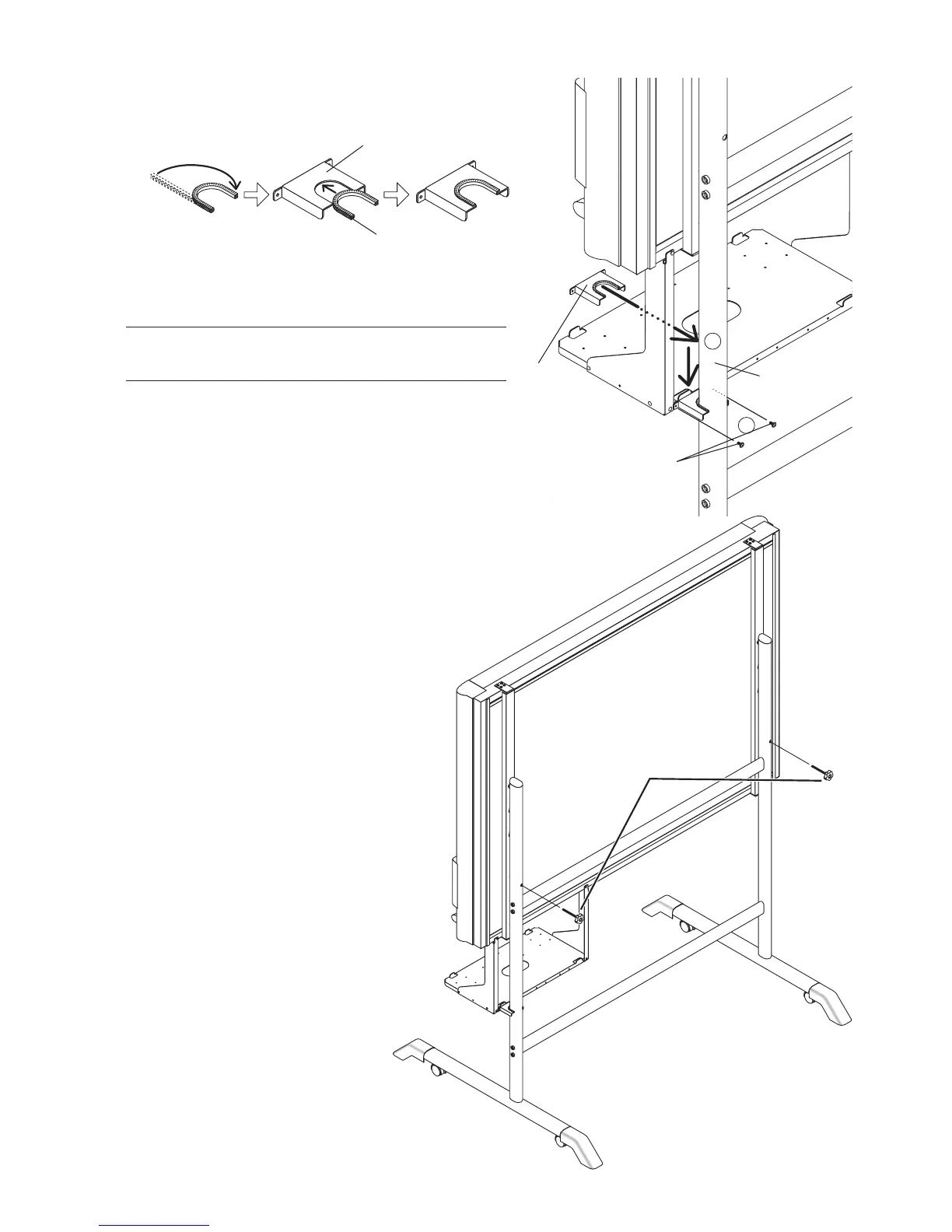

(7) Install the stay to the printer table.
햲 Insert the nylon bushing into the stay.
햳 Insert the stay into the pipe of the stand.
햴 Mount the stay to the printer table using two M3 screws.
Notice
Check again that the grooves in the stand’s hooks are securely inserted
in the mounting holes in the support fittings.
(8) Lock the main unit and stand with the two
locking knobs.
3
2
Stay
Pipe
M3 screws
Locking knobs
Stay
Nylon bushing
To Next Page
