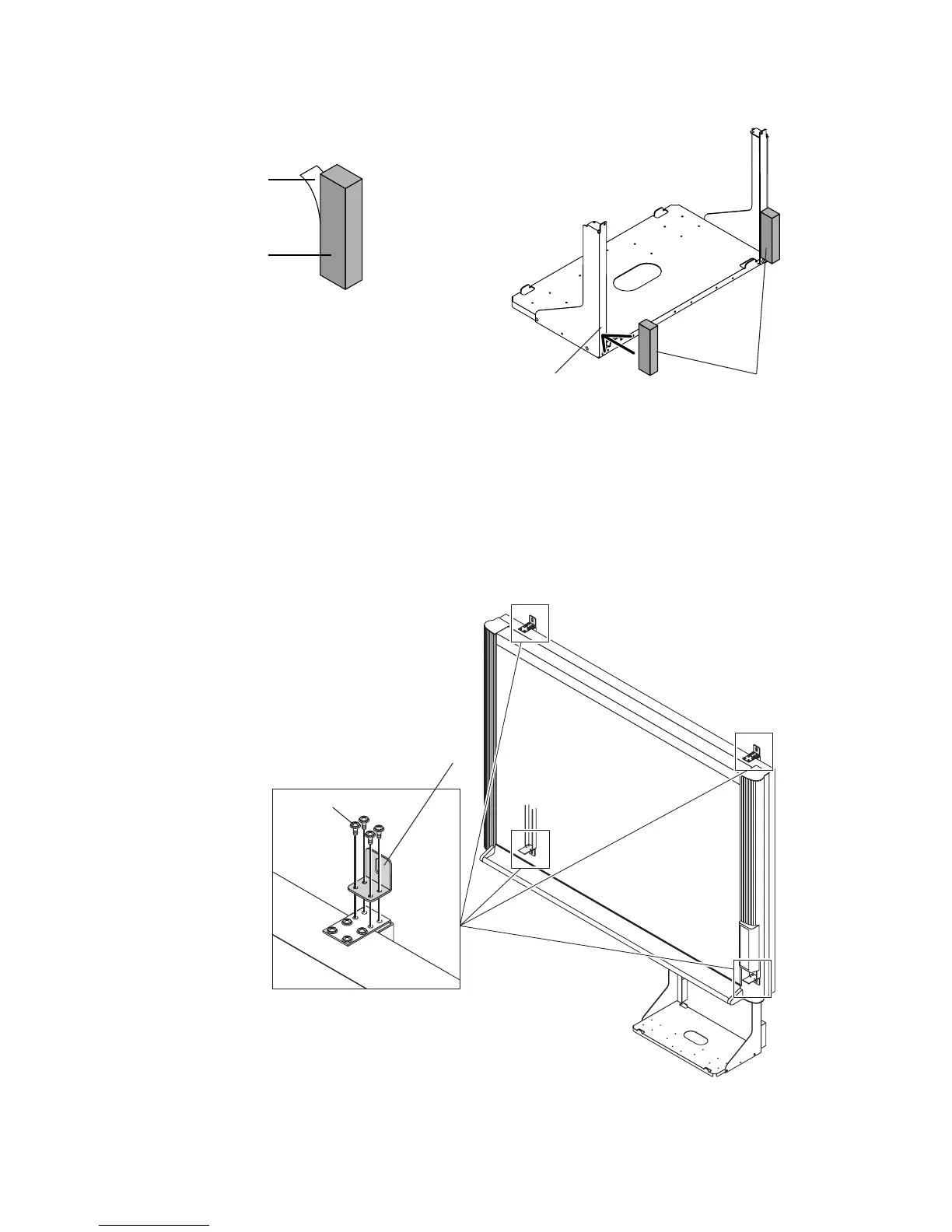

(3) Attach the 4 supplied wall-mount brackets to the Copyboard using M4×8 screws.
Four screws for each bracket. (Total 16 screws.)
(2) Stick the cushions on the printer table, then mount the printer table on the main unit.
햲 Peel off the protective sheets from the cushions’ adhesive surfaces.
햳 Stick the cushions (2) on the back of the bracket.
See page 9 for instructions on assembling and mounting the printer table.
When mounting the printer table after installing the main unit on a wall, see page 9.
* There is no need to mount the printer table when only storing data in the USB memory storage.
Protective sheet on
adhesive surface
Cushion
CushionsBack of bracket
햲
햳
Wall-mount bracket
M4×8 screw
