5 It is recommended to install by-pass pipes over each filter and dryer together with
ball valves in order to isolate the filters and/or dryer during service operations,
without disturbing the compressed air delivery.
Connection to the compressed air network

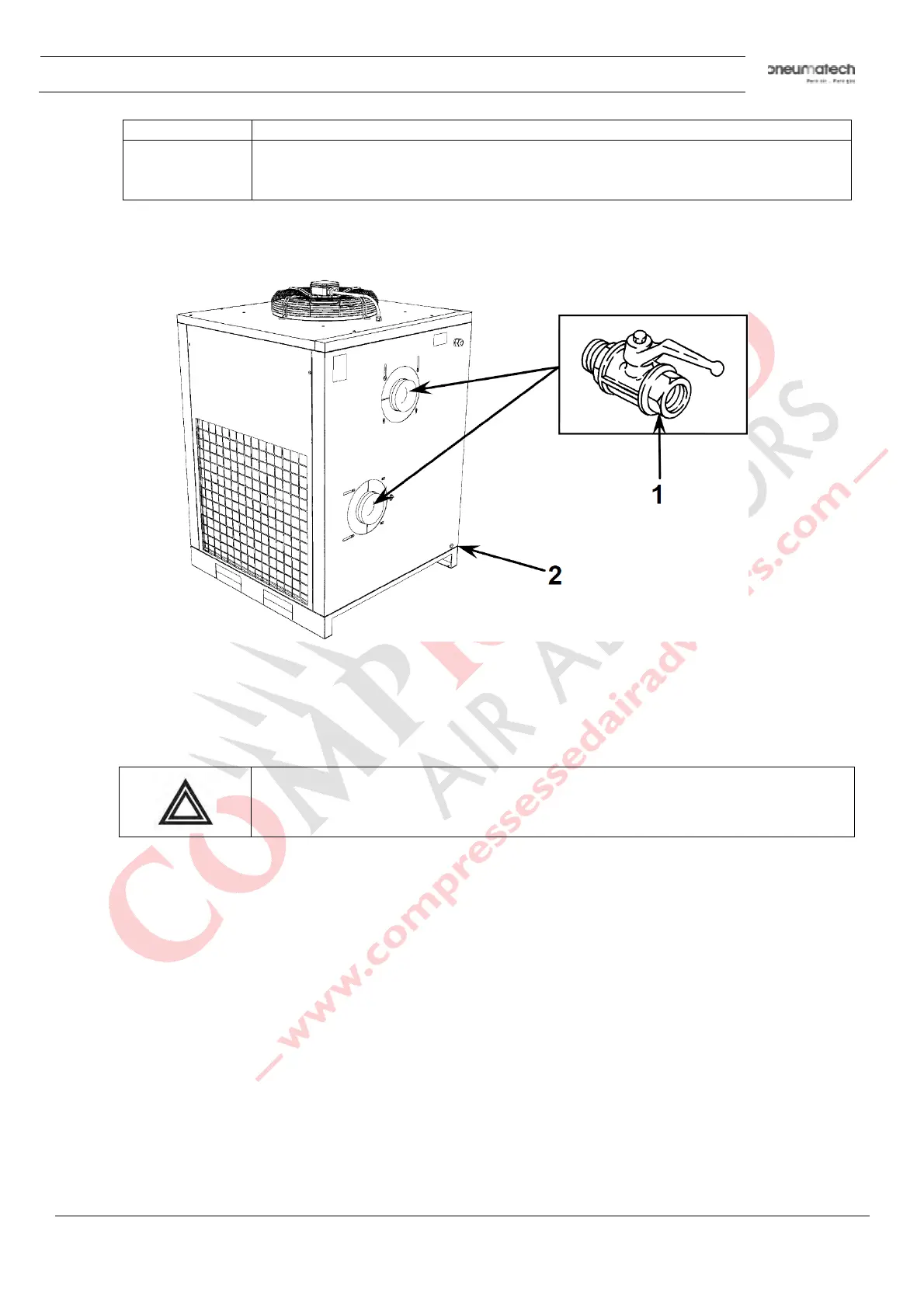

1. Fit a manual ball valve (1) between the machine and the compressed air network to isolate the dryer
during maintenance operations (see above figure).
2. Drainage of automatic condensate (2) are led outside the machine with a flexible pipe. Inspect drain
pipes.
Drainage must comply with the local regulations in force.
All damages
due to failure to comply with these indications cannot be attributed to the
manufacturer and may cause invalidity of the guarantee conditions.
