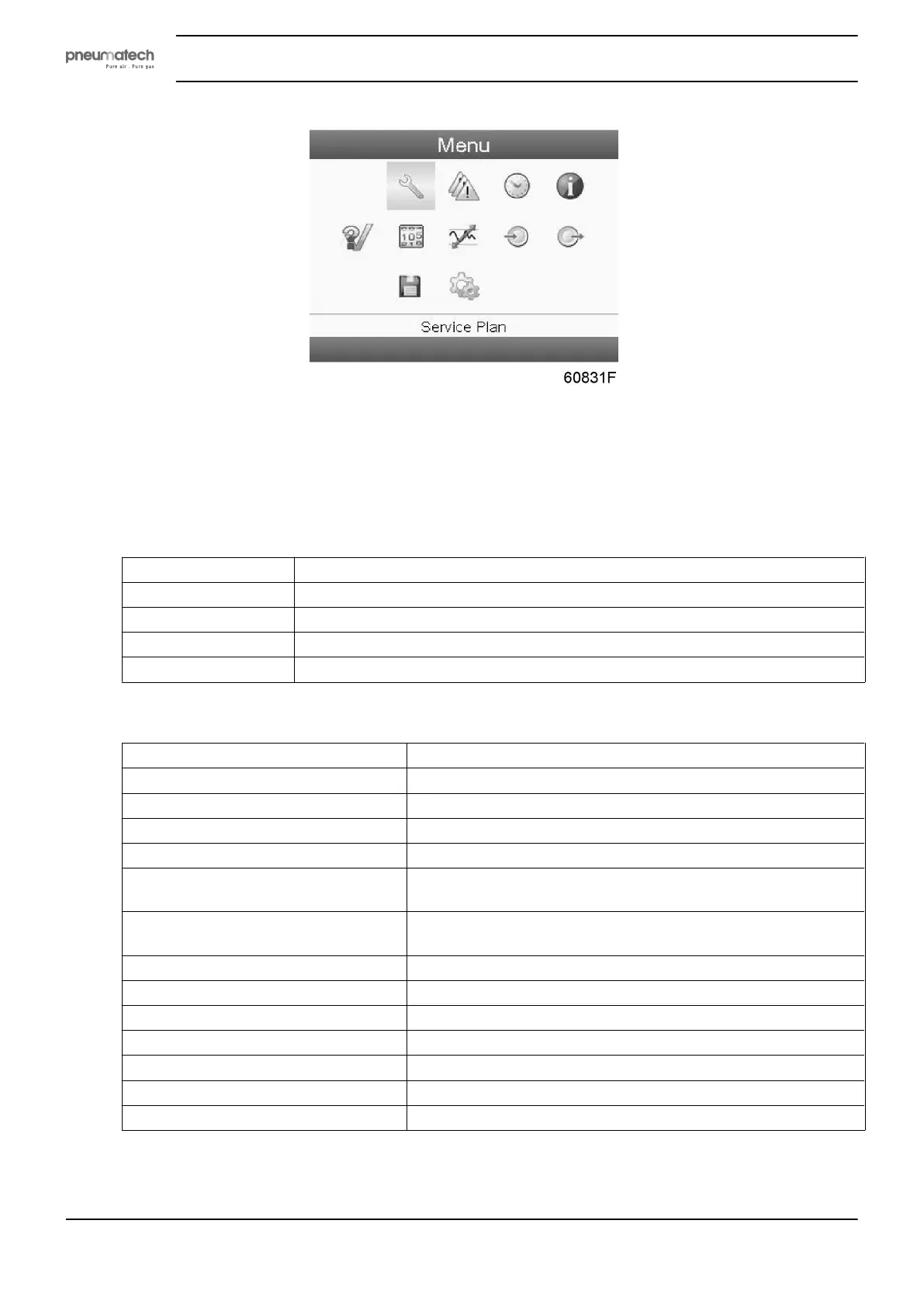

Menu structure
Please find the tree structure on the 2 top levels below. The items are mentioned as they appear on the
screen from top to bottom and left to right. If questions regarding lower levels appear, please consult your
local Customer Center.
SERVICE
Topic Description
Overview
Displays an overview of the running service plans.
Service Plan
Displays configuration of the service plans.
Next Service
Displays the next service task.
History
Displays a log of all automatic shutdowns that have appeared in the past.
PROTECTIONS
Topic Description
Emergency Stop
Displays a list of main protections.
A: High Working Pressure
Displays the protection of the high working pressure of vessel A.
B: High Working Pressure
Displays the protection of the high working pressure of vessel B.
Low Dryer Inlet Temperature
Displays the low inlet protection temperature of the dryer.
A: High Regeneration Temperature
Displays the protection of the high regeneration temperature of
vessel A.
B: High Regeneration Temperature
Displays the protection of the high regeneration temperature of
vessel B.
High Dryer Inlet Temperature
Displays the high inlet protection temperature of the dryer.
Expansion Module Communication
Displays the protection of the expansion module communication.
High Dewpoint
Displays the protection of the high dewpoint temperature.
Low Inlet Pressure
Displays the protection of the low inlet pressure.
Failed to Blow Off Vessel A
Displays the fail to blow off vessel A.
Failed to Blow Off Vessel B
Displays the fail to blow off vessel A.
Failed to Pressurize
Displays the fail to pressurize.
