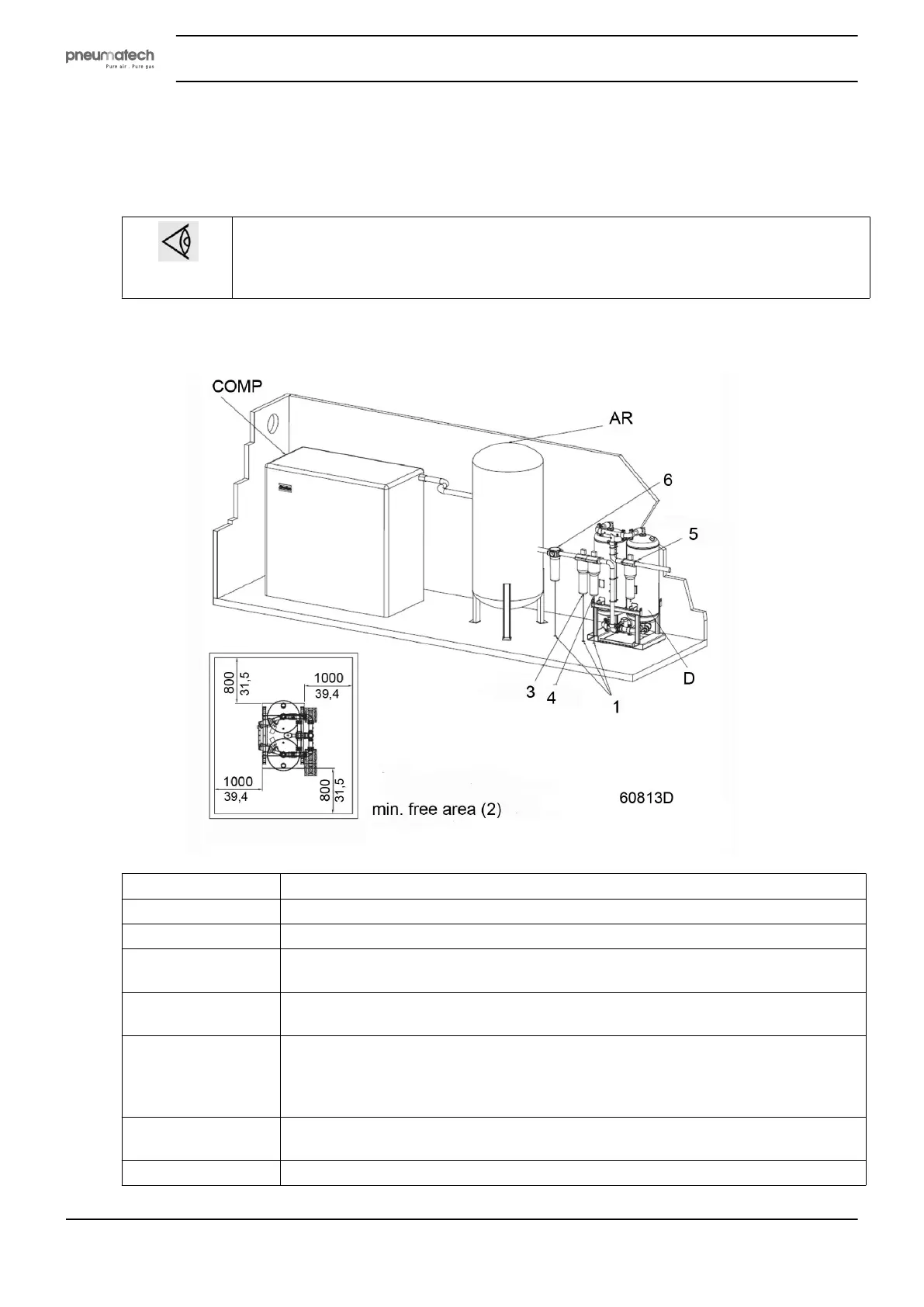

5.2 Installation proposal
Piping
Make sure that all pipes, filters, valves, etc. are clean and that they are installed correctly
with or without bypass system.
Make sure that the piping is installed stress-free. For more information concerning air nets,
cooling systems etc. refer to the compressor installation manual.
To ensure correct operation of the dryer, it has to be fitted properly into the compressed air circuit,
consisting of the compressor, the dryer and the application.
COMP Compressor
AR Air receiver
D Dryer
EIV External inlet valve (not shown)
To cut off the air supply towards the dryer
EOV External outlet valve (not shown)
To cut off the air supply towards the air consumer
BV Bypass valves (not shown on the drawings)
Together with the external inlet valve and the external outlet valve, the bypass
valves allow the dryer and the filters to be serviced while non-dried air flows through
the bypass system.
1 The drain pipes to the drain collector must not dip into the water. For draining of
pure condensate water, install an oil/water separator.
2 Minimum free area to be reserved for the dryer installation
Instruction book
48 2920 1891 00
