96
MAINTENANCE

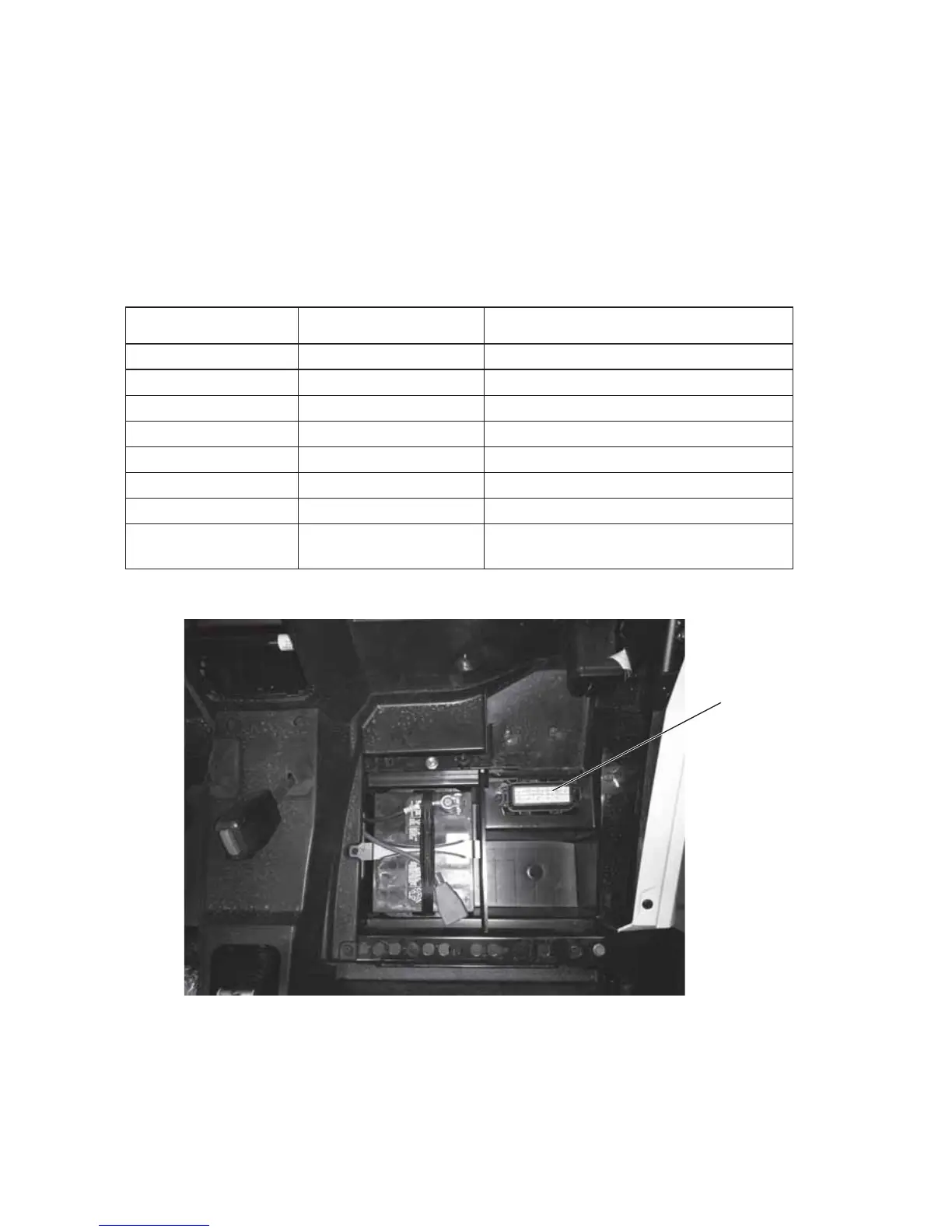

Fuse/Relay Center
If the engine stops or will not start, if the power steering stops working
(if equipped), or if you experience other electrical failures, a fuse may
need replacement. Locate and correct any short circuits that may have
caused the blown fuse, then replace the fuse. The fuse/relay center is
located under the driver’s seat (RZR/RZR S) or under the left rear
passenger seat (RZR 4).
Label Value Function
FAN 20A Circuit Breaker Fan
EFI 20A Fuse Gauge, Injectors, Coil, ECM
FUEL PUMP 10A Fuse Fuel Pump
BRAKE LT 5A Fuse Brake Light
EPS 20A Fuse Power Steering
LIGHTS 10A Fuse Headlights, Taillights, Dash Lights
DRIVE 10A Fuse All-Wheel Drive
ACCESSORY 20A Fuse 12V Receptacle, Under-Hood
Terminal Block
