3.36
Engine/Cooling/Exhaust

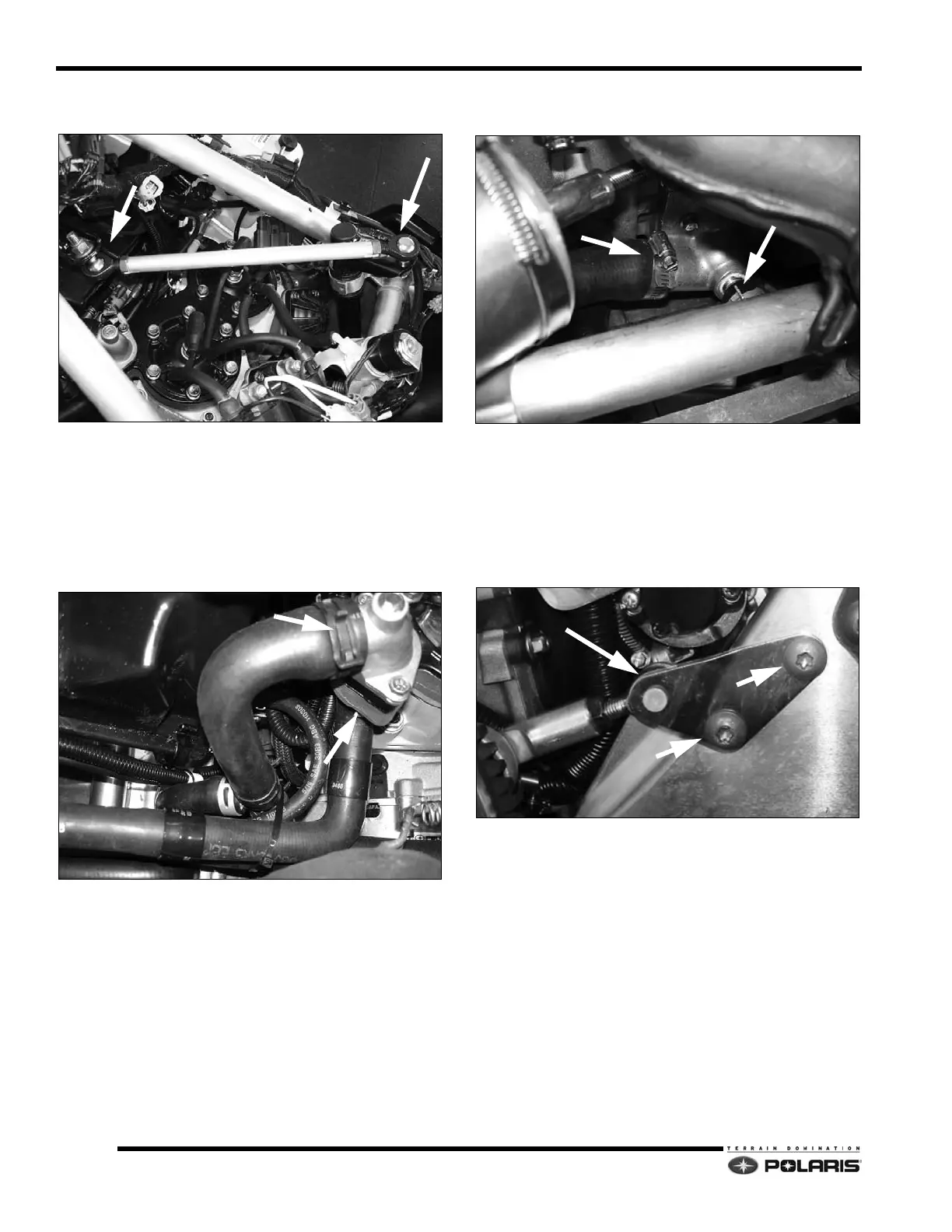

7. Remove the upper steering drag link from the lower
steering shaft.
8. Remove the airbox assembly.See “Air Box Servicing”
on page 2.24.
9. Remove the fuel supply and return hoses between the
fu
el tank and fuel rail mounted to the engine.
10. Remove the surge tank cap. Extract the engine
co
olant with a siphon or wet/dry vacuum.
11. Remove the thermostat bypass and main outlet hoses
fro
m the thermostat housing.
12. Remove the coolant return hoses from the water
pum
p cover.
13. Disconnect the throttle cable from the throttle body.
14. Cut the knot at the end of the recoil rope to remove
th
e handle. Pass the recoil rope through the console
and guide. Tie the recoil rope in a knot to prevent it
from retracting into the recoil housing.
15. Disconnect the engine torque link by removing the two
scr
ews securing the bracket to the bulk, and then the
torque link lock nut.
