9925252 4

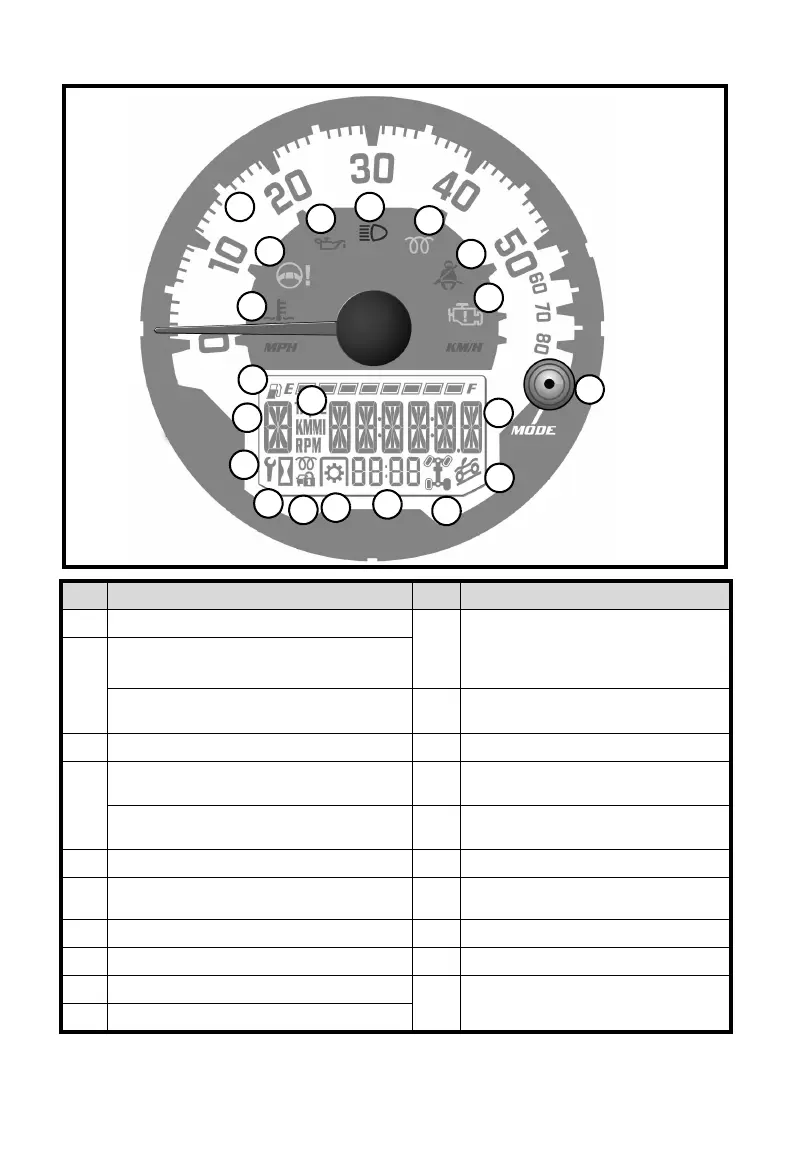

INSTRUMENT PANEL AND OPERATOR CONTROLS (CONT’D)
REF. FUNCTION REF. FUNCTION
1 Speedometer (KM/H or MPH) 11 Hourmeter, Trip Meter, Odometer,
Tachometer, Battery Voltage,
Engine Coolant Temperature,
Service Interval, Check Engine
2 Engine Coolant Temperature Indicator
(Red Light)
Hydraulic Fluid Temperature Indicator
(Red Light)
12 Not used for this model
3 Not used for this model (Orange Light) 13 Drive Mode Indicator
4 Engine Oil Pressure Indicator (Red
Light)
14 Clock / PTO RPM
Hydraulic Fluid Filter Plugged Indicator
(Red Light)
15 PTO Indicator
5 High Beam Indicator (Blue Light) 16 Not used for this model
6 Engine Pre-Heat Indicator (Orange
Light)
17 Hourmeter Symbol
7 Fasten Seat Belt Indicator (Red Light) 18 Service Interval Symbol
8 Check Engine Light (Orange Light) 19 Gear Selector Indicator
9 Mode Button 20 Trip Meter (KM or Mi), RPM
Symbols
10 Fuel Level Indicator
16
18
20
17
19
1
2
3
4
5
6
7
8
9
10
11
13
14
15
P-97832A
12
