DP-20 WEB GUIDE CONTROLLER USER MANUAL
6
6-5

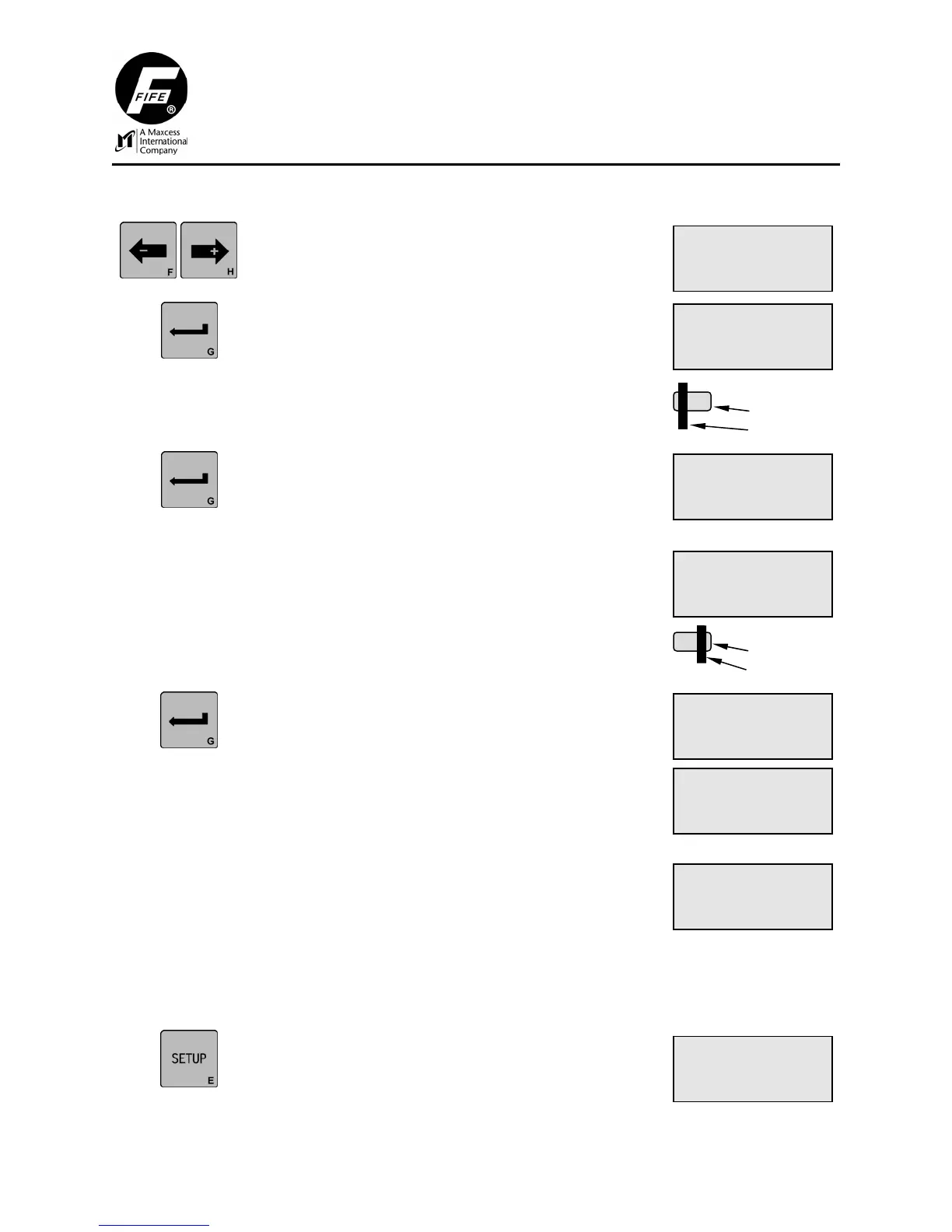

5. If necessary, use the ARROW keys to select
the Center of Line sensor input.
ý will be
displayed on line 1.
6. Press the ENTER key to begin the calibration.
UNCOVER SENSOR will be displayed on line
2. With the sensor light spot correctly focused
on the line to be guided, position the sensor
such that the line is located within ½ of the light
spot (see graphic at right). The sensor signal is
displayed on Line 3.
Light Spot
Line
7. Press the ENTER key. WAIT... will be displayed
for a few seconds on line 4 of the LCD Panel.
Maintain the web position during this wait
period.
8. Once the delay has ended, COVER SENSOR
will be displayed on line 2. Position the sensor
such that the line to be guided is located within
the opposite ½ of the light spot (see graphic at
right). The sensor signal is displayed on Line 3.
Light Spot
Line
9. Press the ENTER key. If the contrast is
sufficient for guiding, SUCCESSFUL will be
displayed for a few seconds on line 2, then the
unit will automatically exit the menus and return
to the Operator Level.
—OR—
10. If the contrast is not sufficient for guiding,
FAILED will be displayed on line 2. Press the
MANUAL key to exit the setup menus and
return to the Operator Level. Repeat this
procedure, as necessary.
ý 3D.1.4.1
SETUP (MAN)
SELECT SENSOR
(X4)
06-05-2007 DP-20 WEB GUIDE CONTROLLER Figure Sheet 1-862-D
3X.1.4, Calibration, Line Sensor, Edge of Line Guiding
1. Press the SETUP key to enter the Setup
Menus. The SELECT MENU screen will be
displayed on the LCD Panel.
ý 3D.1.4.3
COVER SENSOR
-ãããããããããá+ 95%
ý 3D.1.4.6
FAILED
-áÜÜÜÜÜÜÜÜÜ+ 3%
ý 3D.1.4.4
SUCCESSFUL
-ãããããããããá+ 95%
3D
MANUAL
ý -ãããããáÜÜÜÜ+
ý 3D.1.4.2
UNCOVER SENSOR
-ÜÜÜÜÜÜÜÜÜÜ+ 0%
WAIT...
Ł 3E.1
SETUP (MAN)
SELECT MENU
BASIC
ý 3D.1.4.2
UNCOVER SENSOR
-ÜÜÜÜÜÜÜÜÜÜ+ 0%
