Polaris DP-20 User Manual

DP-20 WEB GUIDE CONTROLLER USER MANUAL
6
6-34
10. Press the ENTER key to store the new ASC
LIMITS, or press the MANUAL key to abort the
changes. The system will exit the setup menus,
and return to the Operator Level.
3B
MANUAL
Ø -ãããããáÜÜÜÜ+
3X.5.3, Set ASC Source
This procedure is used to select the source of the signal that ASC acts on.
Only special applications require the ASC Source to be changed from the
default settings. The ASC Source is configurable for each sensor mode.
1. Press the SETUP key to enter the Setup
Menus. The SELECT MENU screen will be
displayed.
2. Use the ARROW keys to scroll until CUSTOM
is displayed on line 4.
3. Press the ENTER key to enter the Custom
Menus. The ASC CONTROL menu will be
displayed.
4. Use the ARROW keys to scroll until SET ASC
SOURCE is displayed on lin 3. The current
setting is displayed on line 4.
5. If necessary, press the SENSOR key to select
the desired sensor mode.
6. Press the ENTER key to enter the SET ASC
SOURCE menu. The current setting will begin
flashing.
7. Use the ARROW keys to select the desired
setting.
8. Press the ENTER key to store the new ASC
SOURCE, or press the MANUAL key to abort
the change. The system will exit the setup
menus, and return to the Operator Level.

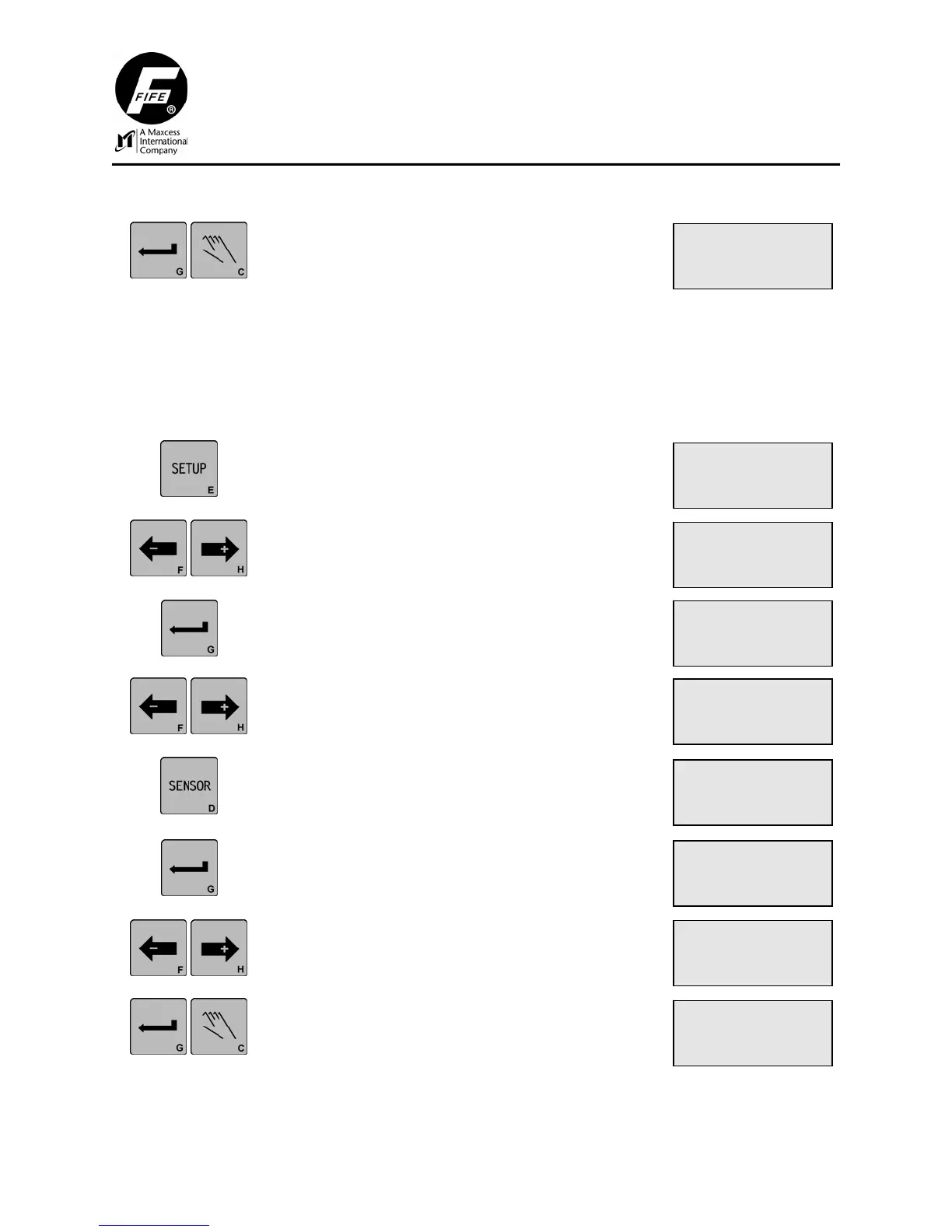

× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.5
SETUP (MAN)
SELECT MENU
CUSTOM
× 3A.5.1
SETUP (MAN)
ASC CONTROL
OFF
× 3A.5.3
SETUP (MAN)
SET ASC SOURCE
×
Ø 3B.5.3
SETUP (MAN)
SET ASC SOURCE
Ø
Ø 3B.5.3.1
SETUP (MAN)
SET ASC SOURCE
× Ø ×Ø
Ø 3B.5.3.1
SETUP (MAN)
SET ASC SOURCE
× Ø ×Ø
3B
MANUAL
Ø -ãããããáÜÜÜÜ+
06-05-2007 DP-20 WEB GUIDE CONTROLLER Figure Sheet 1-862-D
