6. Use the ARROW keys to scroll to the desired
selection, as indicated on line 4 of the LCD
Panel. YES indicates that the jog is enabled in
the corresponding operation mode, as indicated
on line 3. NO indicates it is disabled.
7. Press the ENTER key to store the change or
press the MANUAL key to abort the change.
The system will exit the setup menus, and
return to the Operator Level.

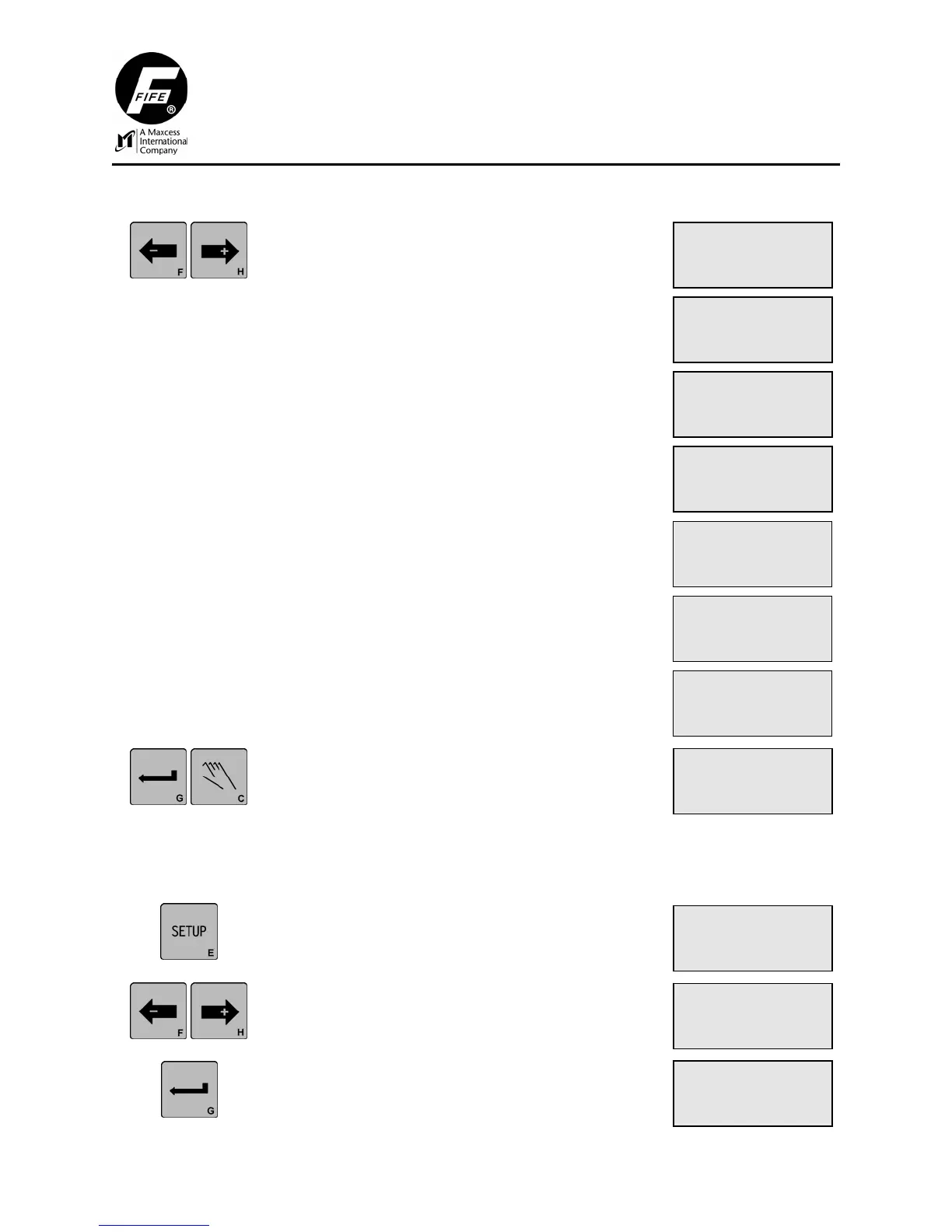

× 3A.2.4.2
SETUP (MAN)
|AUTO|SC |MAN |
|NO |NO |YES |
× 3A.2.4.3
SETUP (MAN)
|AUTO|SC |MAN |
|NO |YES |NO |
|NO |YES |YES |
× 3A.2.4.4
SETUP (MAN)
|AUTO|SC |MAN |
× 3A.2.4.5
SETUP (MAN)
|AUTO|SC |MAN |
|YES |NO |NO |
× 3A.2.4.6
SETUP (MAN)
|AUTO|SC |MAN |
|YES |NO |YES |
× 3A.2.4.7
SETUP (MAN)
|AUTO|SC |MAN |
|YES |YES |NO |
× 3A.2.4.8
SETUP (MAN)
|AUTO|SC |MAN |
|YES |YES |YES |
3A
MANUAL
× -ãããããáÜÜÜÜ+
3X.2.5, Set Jog Polarity
1. Press the SETUP key to enter the Setup
Menus. The SELECT MENU screen will be
displayed on the LCD Panel.
2. Use the ARROW keys to scroll until SPECIAL
is displayed on line 4.
3. Press the ENTER key to enter the Special
Menus. The DEADBAND menu will be
displayed.
× 3A.1
SETUP (MAN)
SELECT MENU
BASIC
× 3A.2
SETUP (MAN)
SELECT MENU
SPECIAL
× 3A.2.1
SETUP (MAN)
DEADBAND
-ÜÜÜÜÜÜÜ+ 0.0%
06-05-2007 DP-20 WEB GUIDE CONTROLLER Figure Sheet 1-862-D
