98
MAINTENANCE
General Maintenance
NOTE: Do not touch a halogen bulb with bare fingers. Oil from skin
leaves a residue, causing a hot spot that will shorten the life of the
lamp.
Headlight s

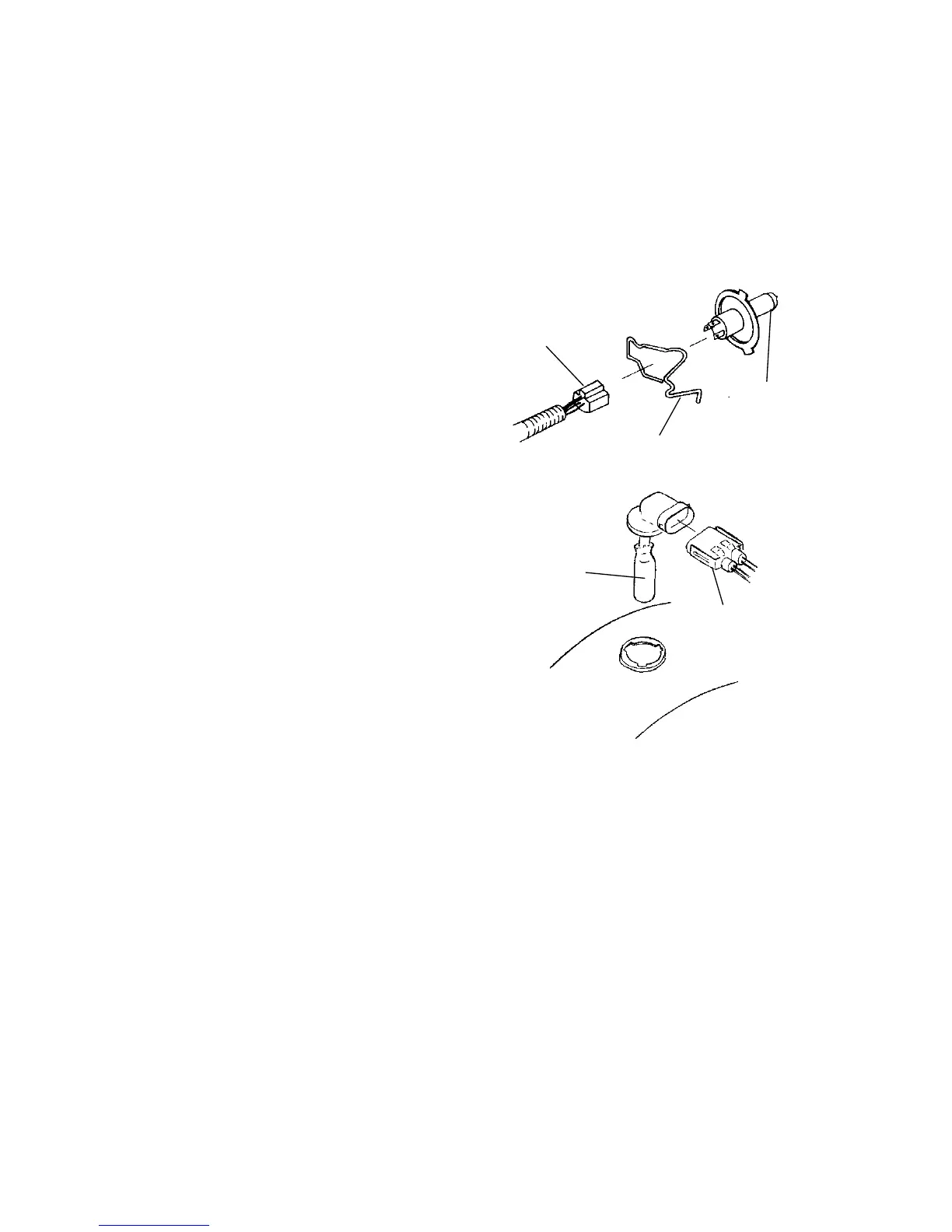

Removing Halogen Bulbs - High/Low Beam
1. Pinch the ends of the spring (1)
together and lift until it releases
from the spring retainer.
2. Lift the spring carefully around
the wire harness (2) and flip to
the outside of the housing.
3. With the wire harness attached to
the bulb (3), withdraw the bulb
from the housing.
4. Grasp the bulb by the metal base
and carefully separate it from the
harness.
Installing the Bulb
1. Hold the bulb by the metal base
and install it into the wire harness.
2. Insert the bulb into the housing.
3. Carefully flip the spring back into
the housing, placing it around the
wire harness.
4. Squeeze the spring together until it’s over the spring retainer and
release.
5. Verify headlight aim.
Removing Halogen Bulbs - High Beam
1. Remove the wire harness (4).
2. Gasp the bulb (5) firmly and twist it 1/2 turn counterclockwise.
3. Remove the bulb from the housing and replace it with a new bulb.
4. P l ace the bulb and housing back inside the hole and turn the
housing 1/2 turn clockwise to lock into place.
5. Reinstall the wire harness to the housing.
2
1
3
4
5
