General Maintenance
Drive Belt In stallation

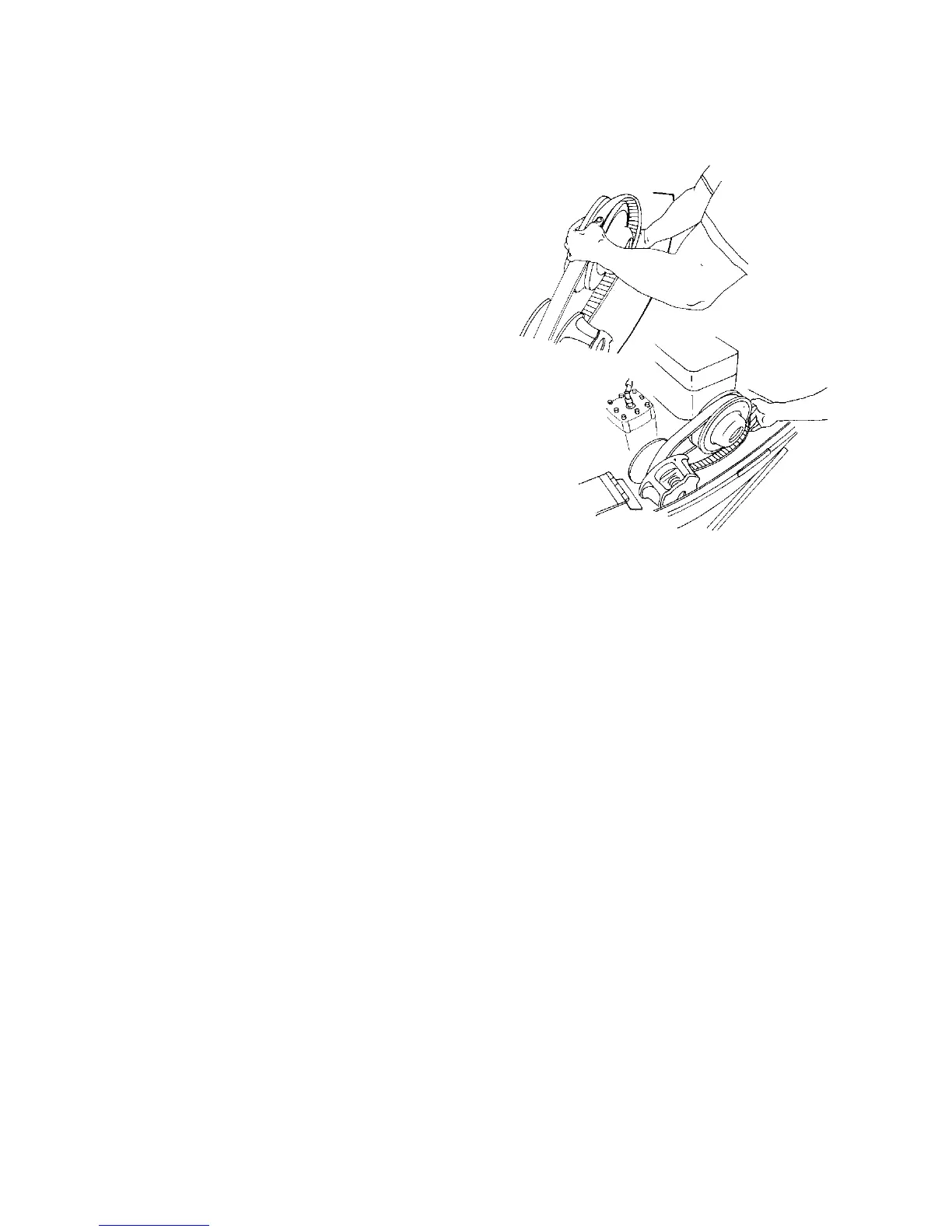

1. Drop the drive belt over the
drive clutch and pull back the
slack (A). NOTE: To ensure
satisfactory belt life, install
belts so they operate in the
same direction of rotation by
positioning the identification
numbers so that you can read
them. If required, separate the
sheaves as outlined in the belt
removal procedures.
2. Turn the driven clutch
moveable sheave clockwise
while pushing inward and
forcing the belt down between
the sheaves.
3. Hold the belt down between the sheaves and roll the bottom
portion over the outer clutch sheave (B). Work the belt to the outer
edge of the sheave.
4. Cl ose the clutch guard and reinstall the retaining pin.
5. Close and secure the hood and release the parking brake.
