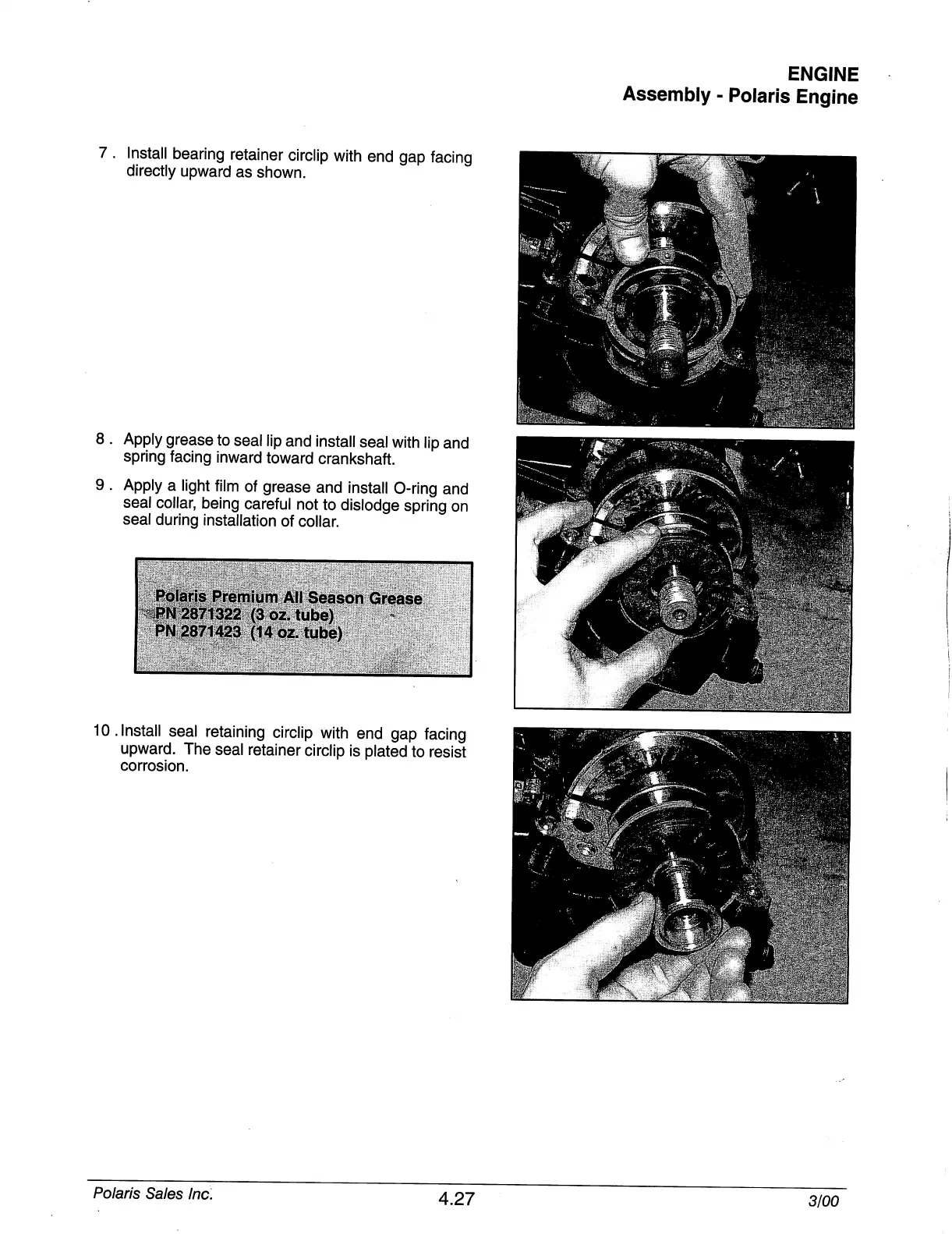

ENGINE
Assembly
-
Polaris
Engine
7
.
Install
bearing
retainer
circlip
with
end
gap
facing
directly
upward
as
shown.
8
.
Apply
grease
to
seal
lip
and
install
seal
with
lip
and
spring facing
inward
toward
crankshaft.
9
.
Apply
a
light
film
of
grease
and
install
O-ring
and
seal
collar,
being
careful
not
to
dislodge
spring
on
seal
during
installation
of
collar.
^i^^^^Slt^:^r^:/-':
10.Install
seal
retaining
circlip
with
end
gap
facing
upward.
The
seal
retainer
circlip
is
plated
to
resist
corrosion.
Polaris
Sales
Inc.
4.27
3/00
