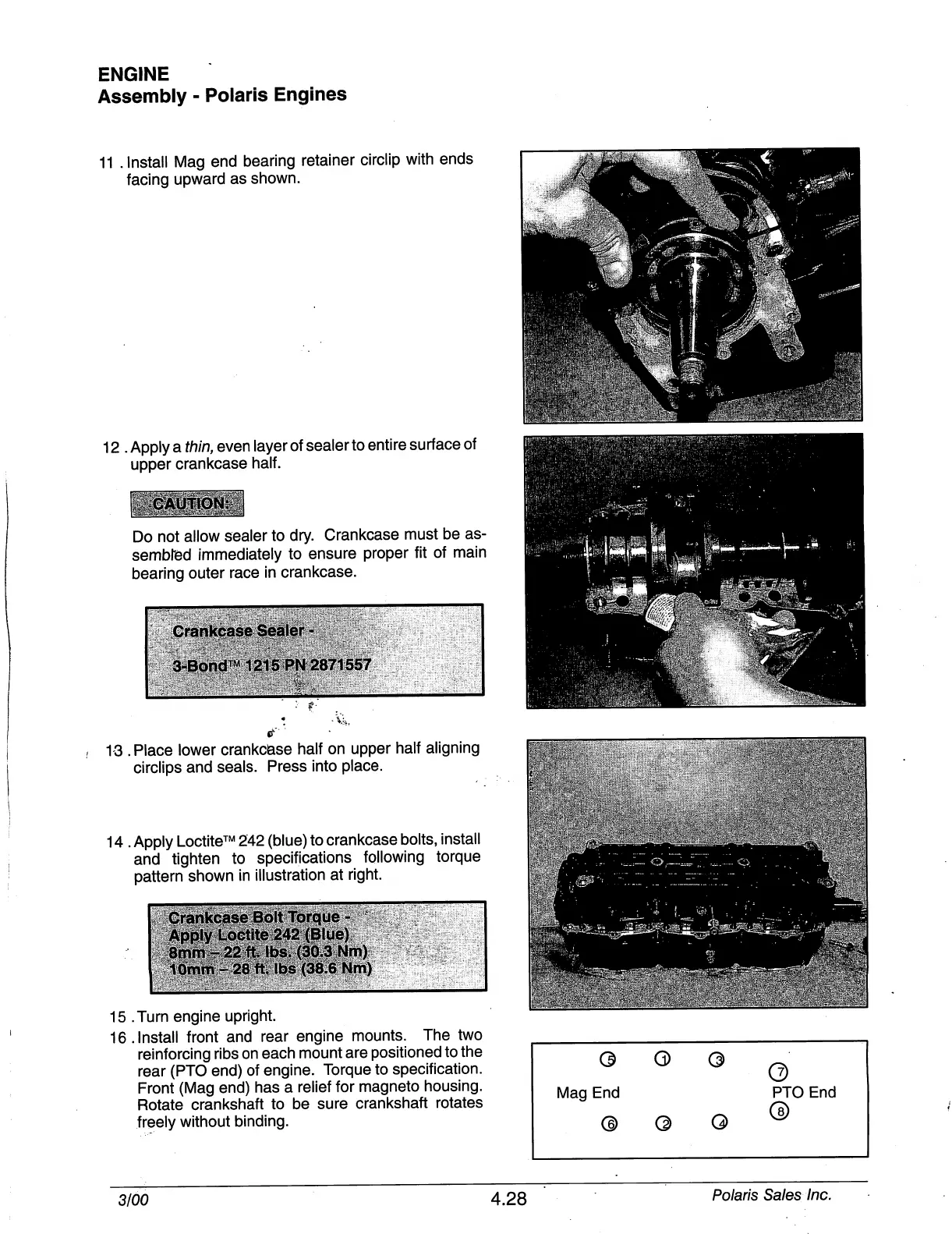

Polaris Genesis 2000

ENGINE
Assembly - Polaris Engines
11 .Install Mag end bearing retainer circlip with ends
facing upward as shown.
12 . Apply a thin, even layer of sealer to entire surface of
upper crankcase half.
Do not allow sealer to dry. Crankcase must be as-
sembted immediately to ensure proper fit of main
bearing outer race in crankcase.
1-3 . Place lower crankciase half on upper half aligning
circlips and seals. Press into place.
14 . Apply Loctite™ 242 (blue) to crankcase bolts, install
and tighten to specifications following torque
pattern shown in illustration at right.
15 .Turn engine upright.
16.Install front and rear engine mounts. The two
reinforcing ribs on each mount are positioned to the
rear (PTO end) of engine. Torque to specification.
Front (Mag end) has a relief for magneto housing.
Rotate crankshaft to be sure crankshaft rotates
freely without binding.
Mag End
Q
PTO End
Ci)
3/00
4.28
Polaris Sales Inc.
