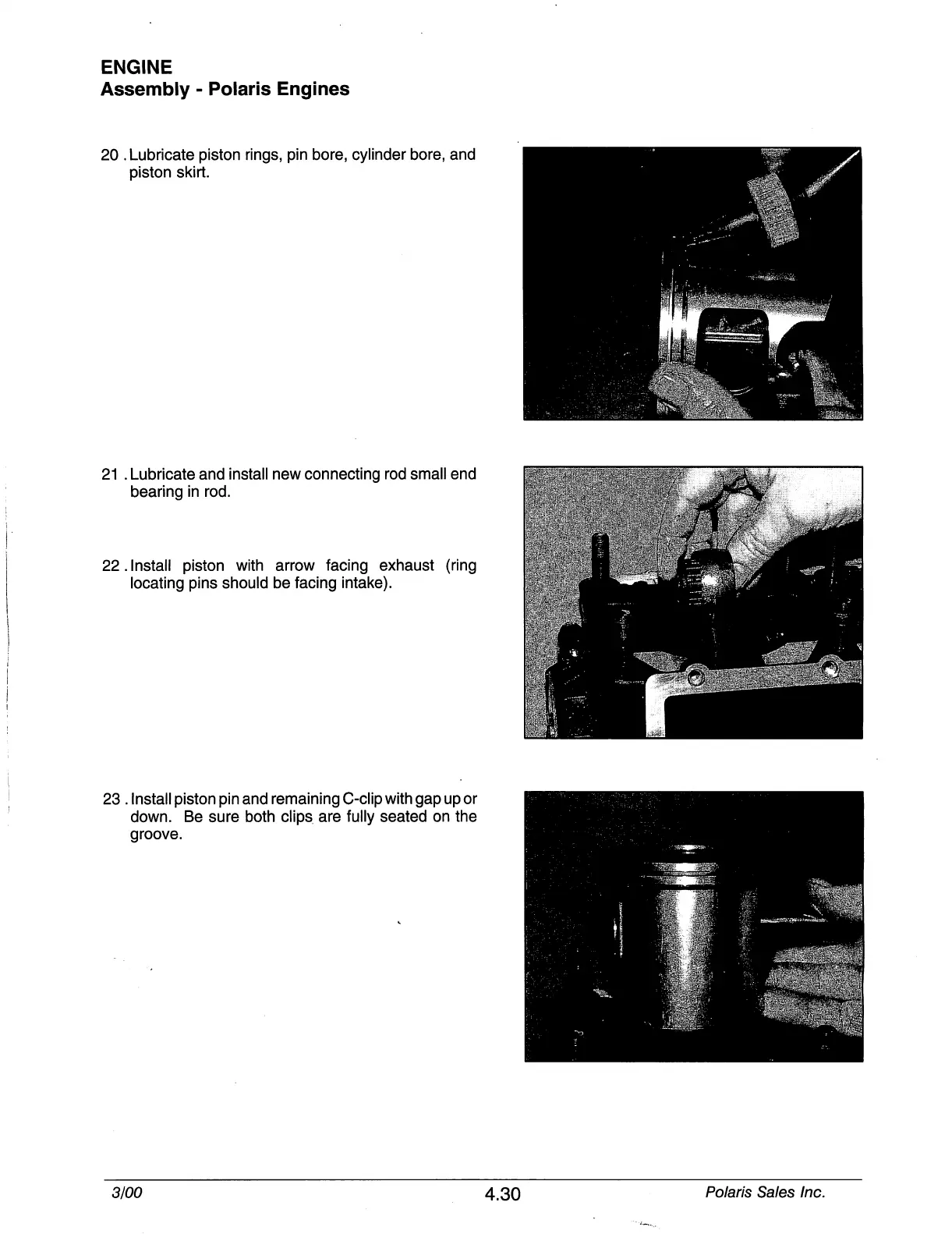

ENGINE
Assembly - Polaris Engines
20 . Lubricate piston rings, pin bore, cylinder bore, and
piston skirt.
21 . Lubricate and install new connecting rod small end
bearing in rod.
22. Install piston with arrow facing exhaust (ring
locating pins should be facing intake).
23 . Install piston pin and remaining C-clip with gap up or
down. Be sure both clips are fully seated on the
groove.
3100
4.30
Polaris Sales Inc.
