ENGINE
Assembly - Polaris Engines

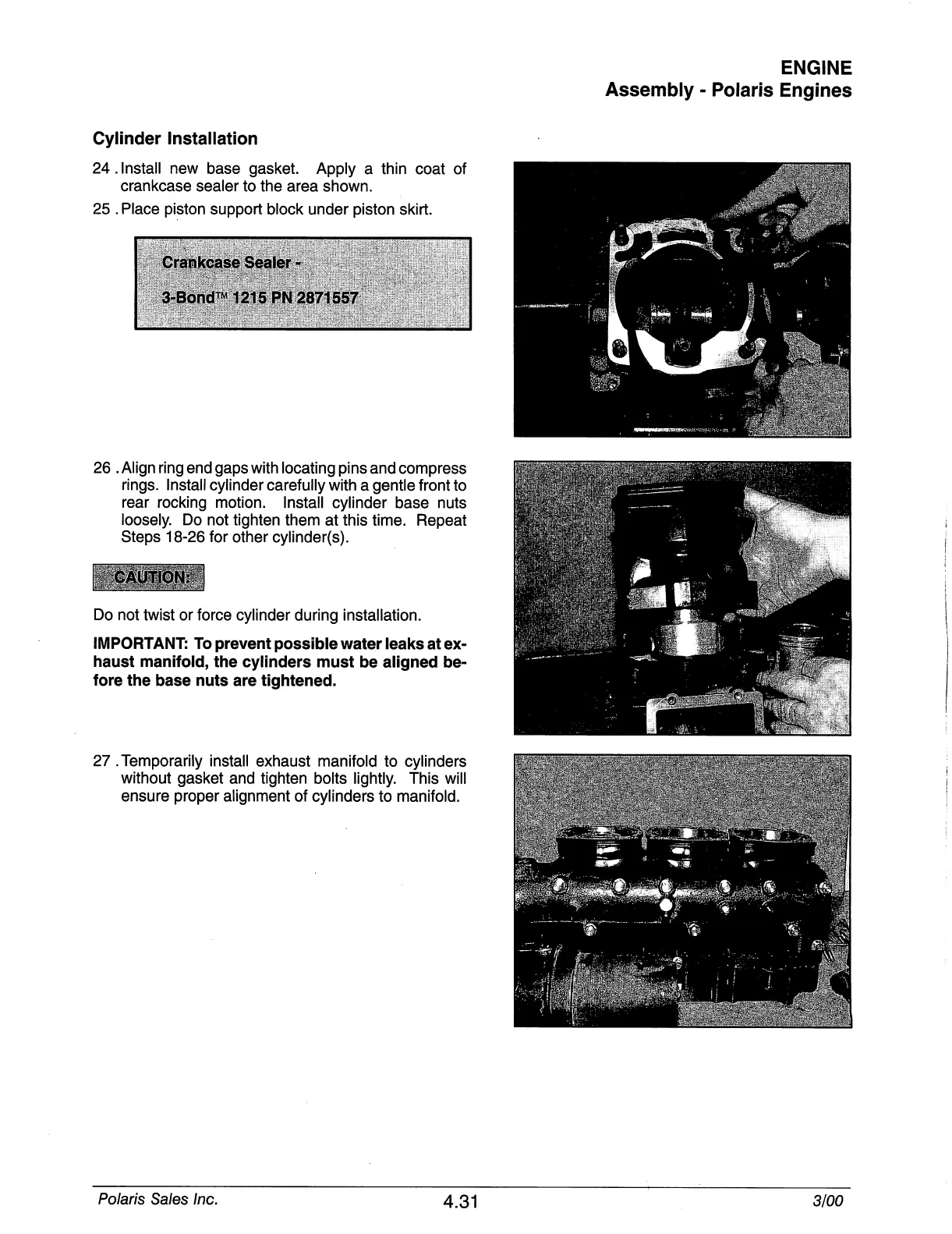

Cylinder Installation
24.Install new base gasket. Apply a thin coat of
crankcase sealer to the area shown.
25 . Place piston support block under piston skirt.
Crankcase Sealer -
12f5 Pft 28715S7
26 . Align ring end gaps with locating pins and compress
rings. Install cylinder carefully with a gentle front to
rear rocking motion. Install cylinder base nuts
loosely. Do not tighten them at this time. Repeat
Steps 18-26 for other cylinder(s).
Do not twist or force cylinder during installation.
IMPORTANT: To prevent possible water leaks at ex
haust manifold, the cylinders must be aligned be
fore the base nuts are tightened.
27 .Temporarily install exhaust manifold to cylinders
without gasket and tighten bolts lightly. This will
ensure proper alignment of cylinders to manifold.
