FUEL SYSTEM/CARBURETION

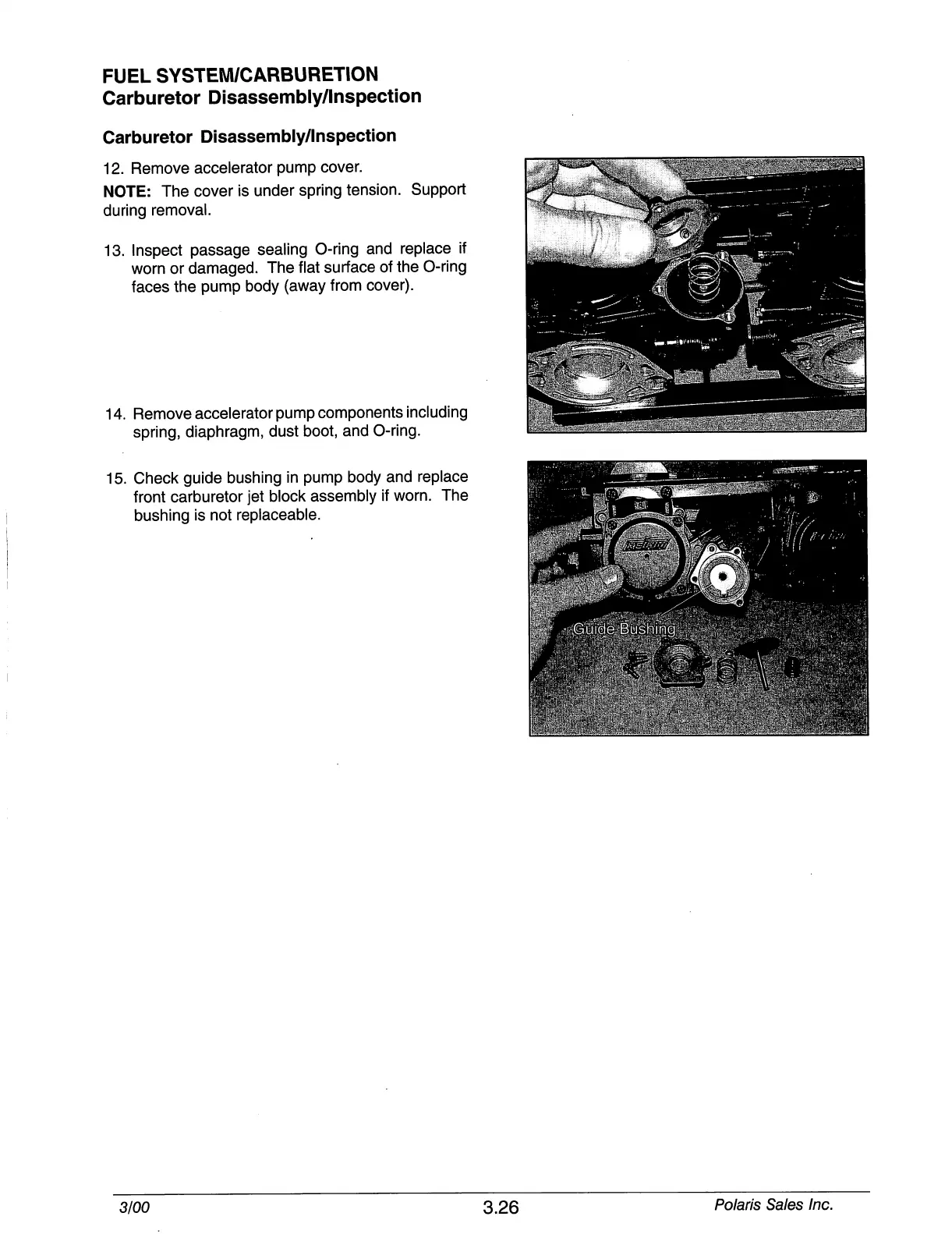

Carburetor Disassembly/Inspection
Carburetor Disassembly/Inspection
12. Remove accelerator pump cover.
NOTE: The cover is under spring tension. Support
during removal.
13. Inspect passage sealing O-ring and replace if
worn or damaged. The flat surface of the O-ring
faces the pump body (away from cover).
14. Remove accelerator pump components including
spring, diaphragm, dust boot, and O-ring.
15. Check guide bushing in pump body and replace
front carburetor jet block assembly if worn. The
bushing is not replaceable.
3/00
3.26
