ASSEMBLY NOTES
Small Worm Gear Clamp Torque: 22 in.lbs. (2.5 Nm)
Fuel filter located on supply hose. Arrow on filter cartridge points downstream, towards fuel rail.
Verify hose routings are free from sharp bends and kinks. Never locate hoses near sharp objects.
Check valve opening pressure: 1.5 PSI.
Vacuum Relief Valve will allow air flow to pass when differential vacuum is equal to , or less than 3 HG.
FUEL FILTER
FUEL PUMP
FUEL SUPPLY HOSE
FUEL RETURN HOSE
VACUUM RELIEF VALVE
CHECK VALVE
QUICK CONNECT FITTING
FUEL INJECTION / IGNITION / EXHAUST SYSTEMS
5.72004 Four Stroke PWC Service Manual

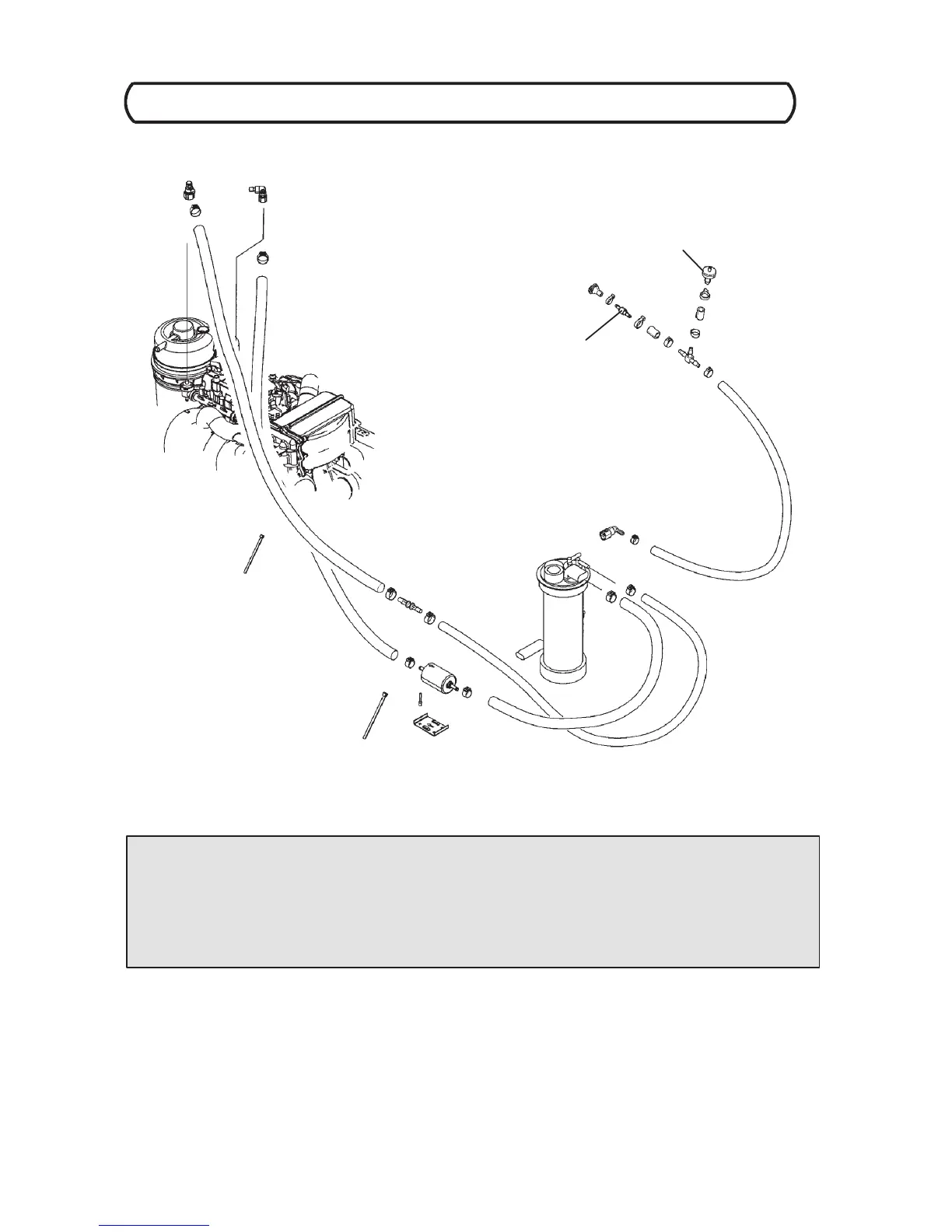

Fuel Supply / Vent Hoses
