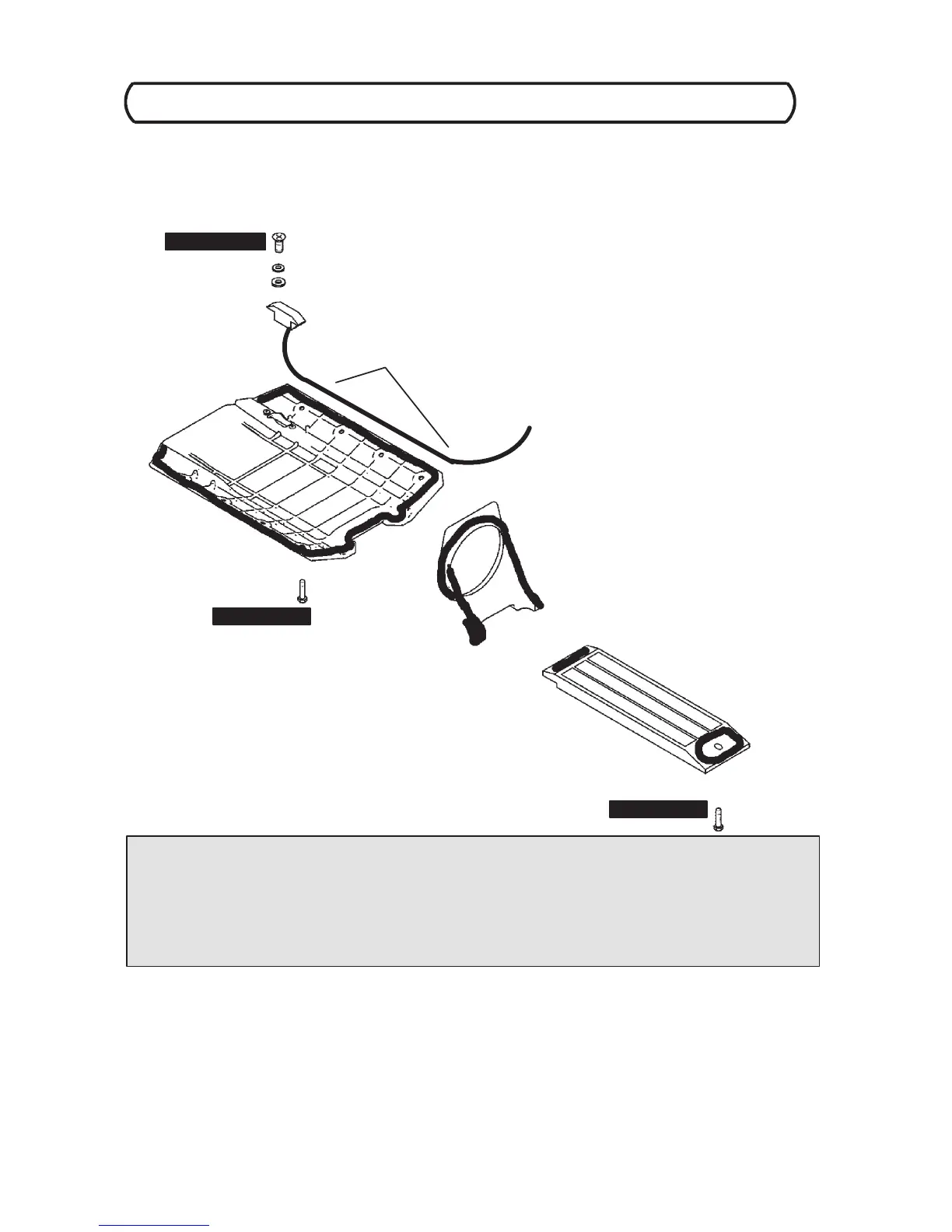

PADDLE WHEEL
RIDE PLAT E
INL ET SCOOP
INT AKE GRA TE
ASSEMBLY NOTES
Paddle Wheel Fastener Torque: 30 in.lbs. (3 Nm)
Paddle Wheel Thru--Hull Nut Torque: 25in.lbs. (2.8 Nm)
Ride Plate Fastener Torque: 8 ft.lbs. (1 1 Nm)
Intake Grate Fastener Torque: 8ft.lbs. (11Nm)
Apply continuous bead of marine--grade silicone to all mating surfaces of the hull, inlet scoop, front and sides of ride plate, and front and rear
sections of inlet grate. Ventilation will occur if gaps are present at mating surfaces.
CAUTION: DO NOT ALL OW SILI CONE TO ENTER WATER HOSE OR PIPE ORIFICES. SERIOUS ENGINE DAMAGE MA Y OCCUR!
Install paddle wheel with harness--end to front of boat.
Route harness along ride plate.
30 in.lbs. (3 Nm)
8 ft.lbs. (11 Nm)
8 ft.lbs. (11 Nm)
PROPULSION
6.72004 Four Stroke PWC Service Manual
Pum p Induction Assem bly
