105
Maintenance
Engine Oil Change
Cleaning the Long Oil Screen
5. Insert the tool through the opening and into the bore of the opposite engine casing wall.
Push the oil screen into the casing as far as possible. Remove the tool.

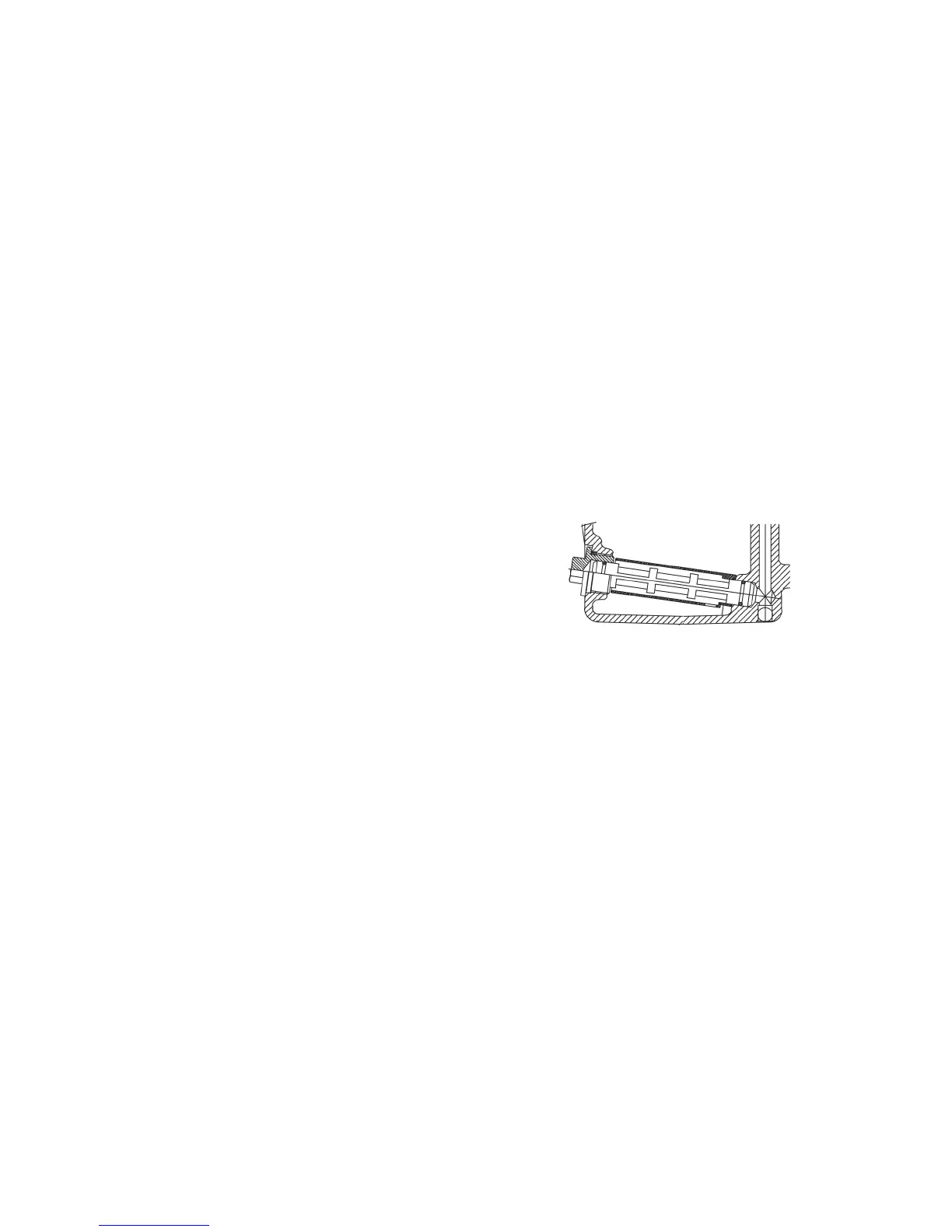

NOTICE: An improperly installed oil screen will
function poorly and result in increased
engine wear. Install the screen securely
at the angle shown in the illustration.
6. Reinstall the plug. Torque to 11 ft. lbs.
(15 Nm).
