172
Maintenance
Rear Suspension
Suspension Set-Up
1. Position the vehicle on a level surface.
2. Stop the engine.
3. Elevate the rear of the vehicle by plac-
ing a suitable stand under the frame.
NOTE: The tires should be barely touching the
ground and the suspension should be
at full rebound.

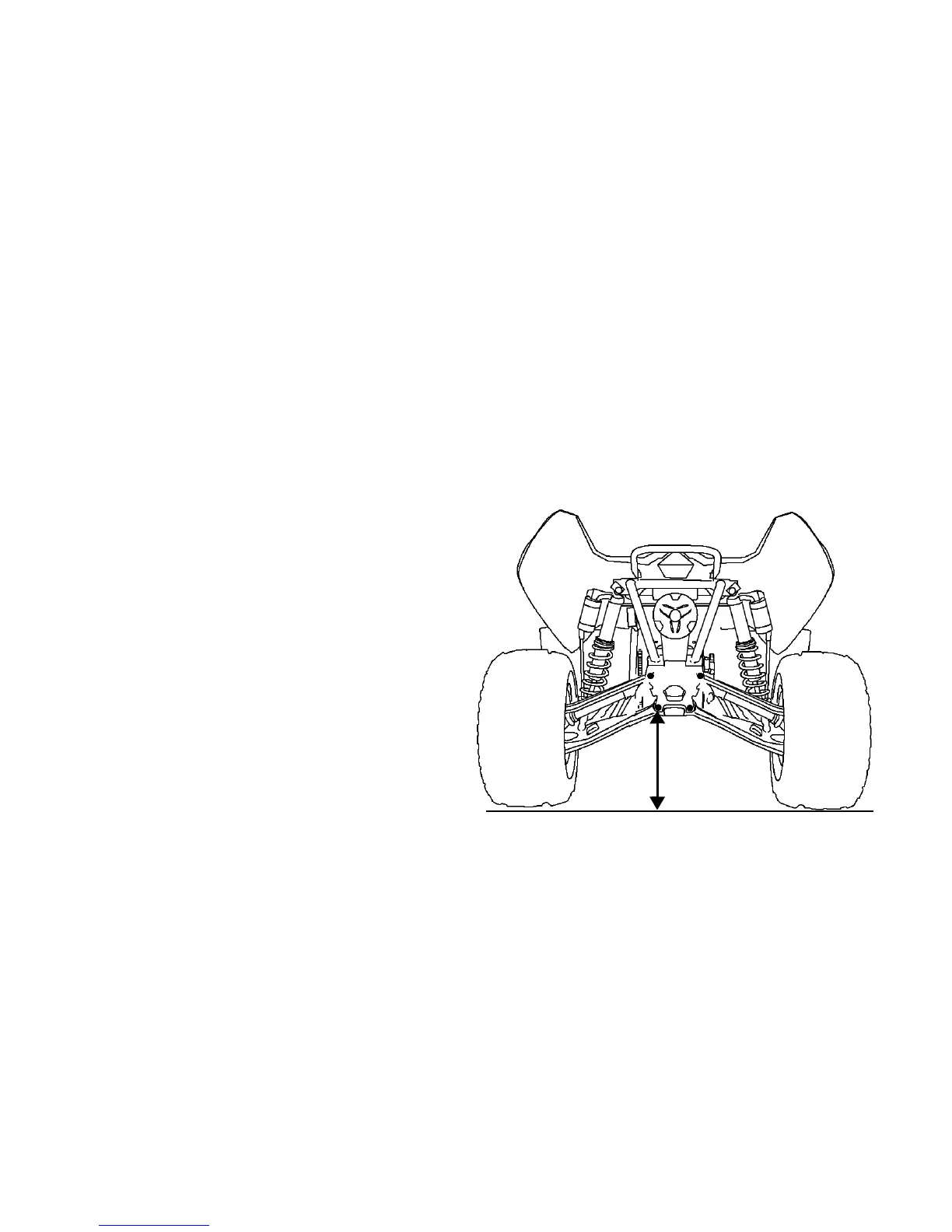

4. Measure the distance from the ground
to the bottom of the rear lower control
arm pivot bolt. Note this measurement
for later use.
To Next Page
