109
MAINTENANCE AND LUBRICATION
Oil an d Filter Chan ge
7. Place a drain pan beneath the crankcase and remove the drain plug.
8. Allow the oil to drain completely.
9. Replace the sealing washer and reinstall the plug. Torque to 14 ft. lbs. (19 Nm).
10. Place shop towels beneath the oil filter.
11. Remove the three cover bolts and remove the
cover.
12. Pull out the oil filter.
NOTE: A spring located behind the filter may pop
out as the filter is removed. The spring
must be reinstalled with the new filter.
13. Using a clean dry cloth, clean the filter sealing
surfaces.

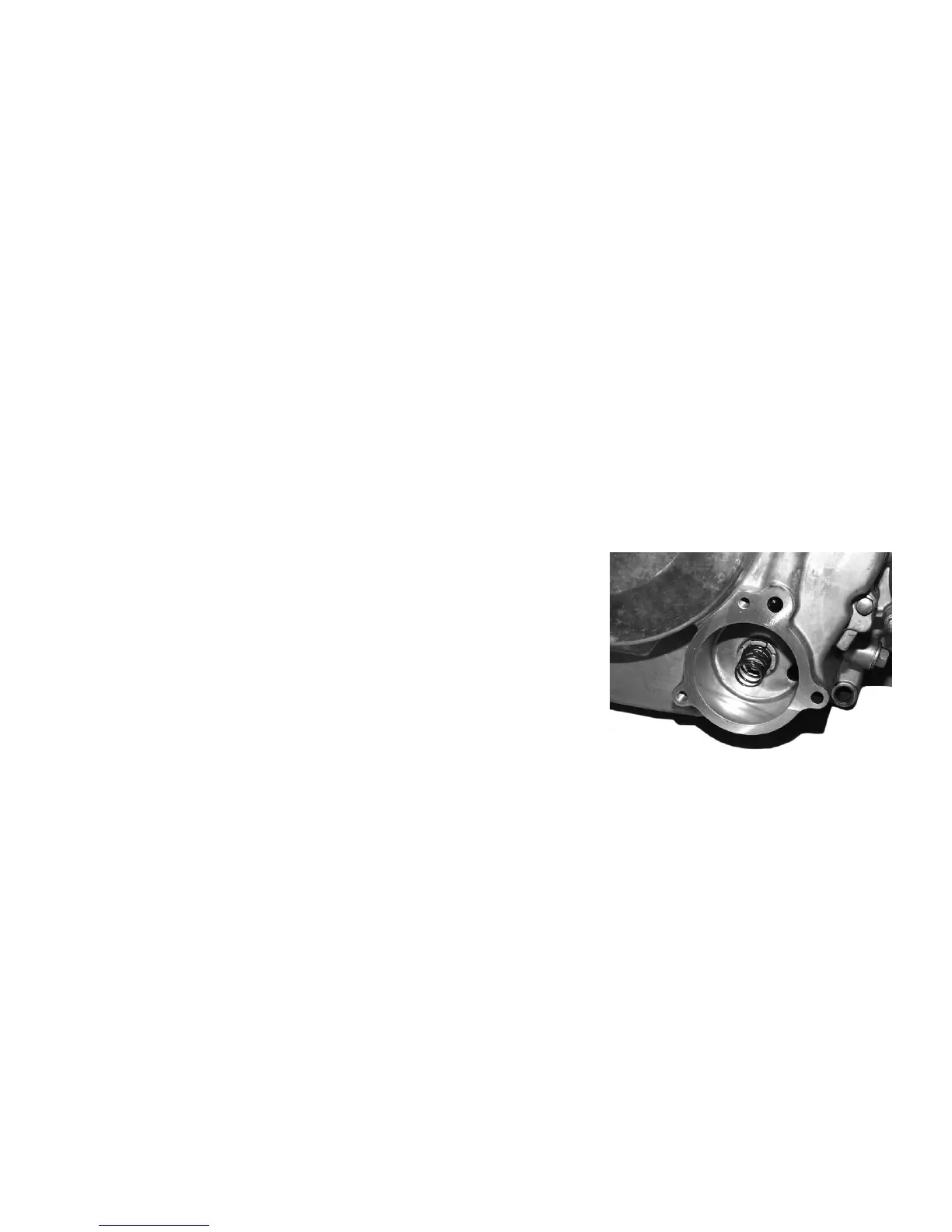

Step 12
