ADJUSTMENTS
Rear Suspension
The rear suspension spri ng preload, shock rebound damping
and shock compression damping may be adjusted to suit
different riding conditions and operator weight.
Spring Preload
1. Raise and safely support the rear of the ATV off the
ground to allow the suspension to fully extend.

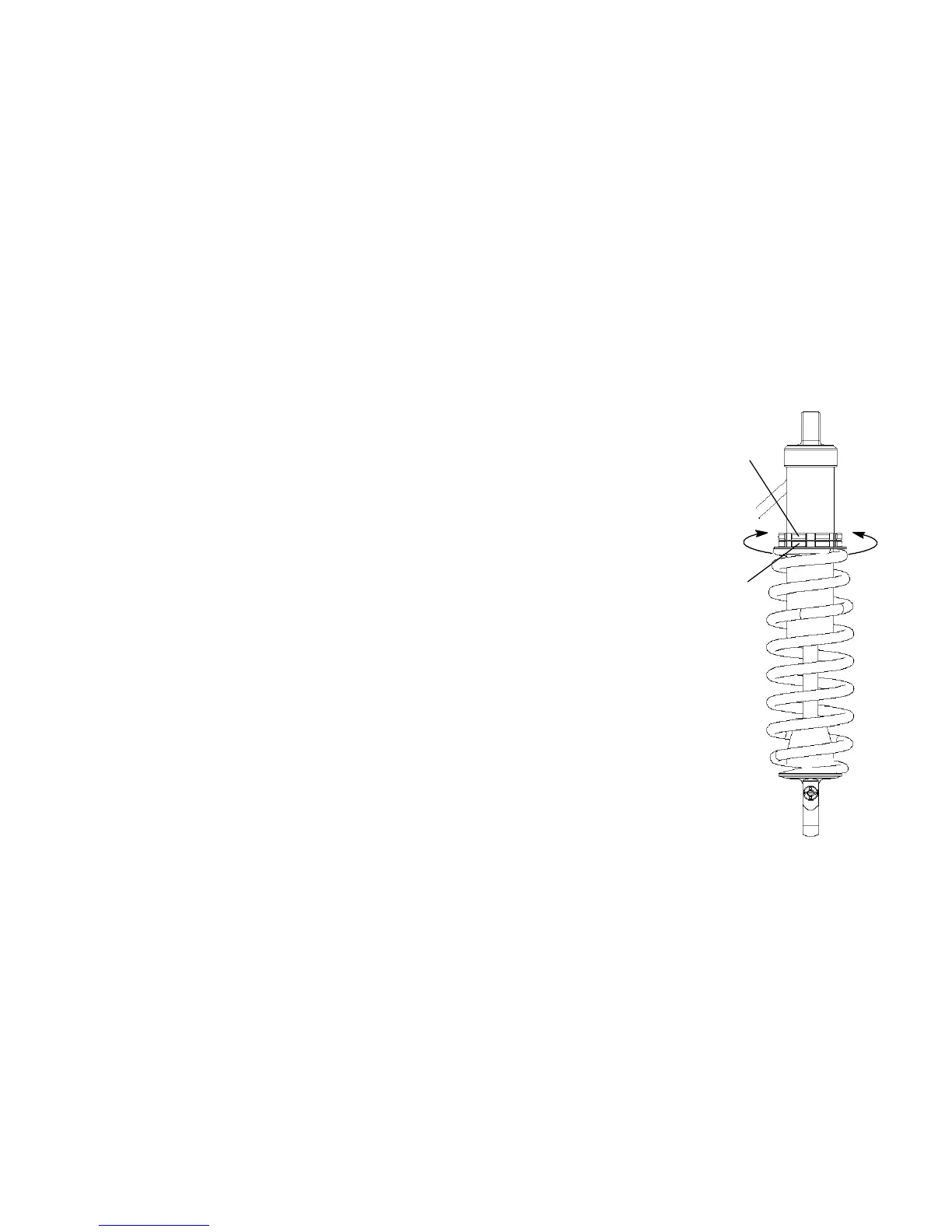

2. Loosen the jam nut (1) and back it away from the
adjusting ring.
3. Turn the adjusting ring (2) clockwise (A) to increase
preload. Turn the ring counter-clockwise (B) t o
decrease preload.
4. Tighten the jam nut fi rmly against the adjuster ring.
