CONTROLS AND FEATURES

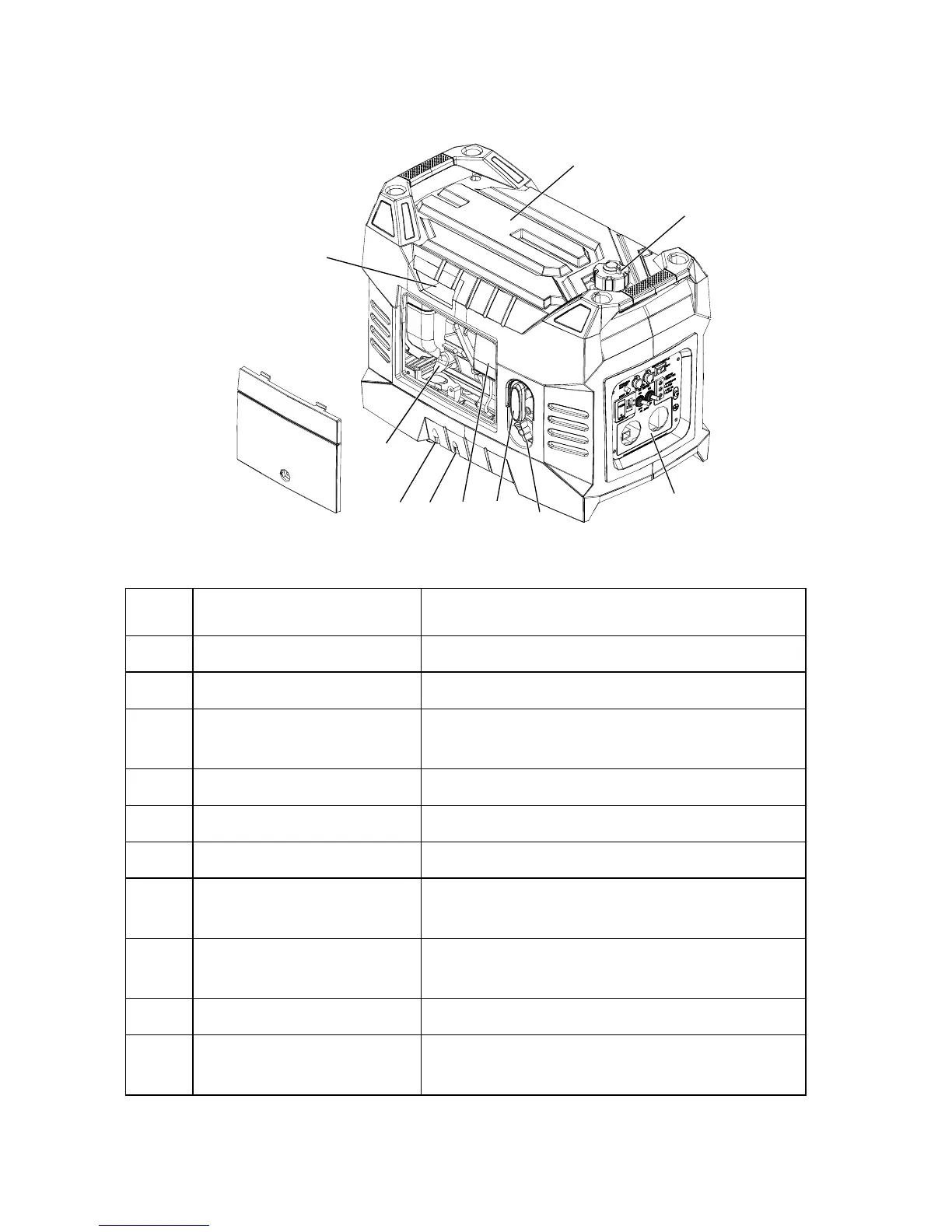

Generator Components:
ITEM NOMENCLATURE DESCRIPTION
A Spark Plug Cap Remove the top to access the spark plug
B Control Panel Generator controls
C Air Filter
Protects the air flow to the carburetor from
becoming obstructed with debris
D Oil Dipstick Measures oil level in the engine
E Carburetor Vent Hose Atmospheric vent
F Carburetor Drain Hose Drains fuel from the carburetor
G Starter Recoil Grip
Causes the recoil starter to crank the engine
when pulled
H Choke Lever
Provides proper starting mixture when
engine is cold
I Fuel Tank Cap Accesses fuel tank
J Engine / Fuel Switch
Controls the ignition system and the fuel
valve
