9
CONTROLS AND FEATURES
CONTROLS AND FEATURES

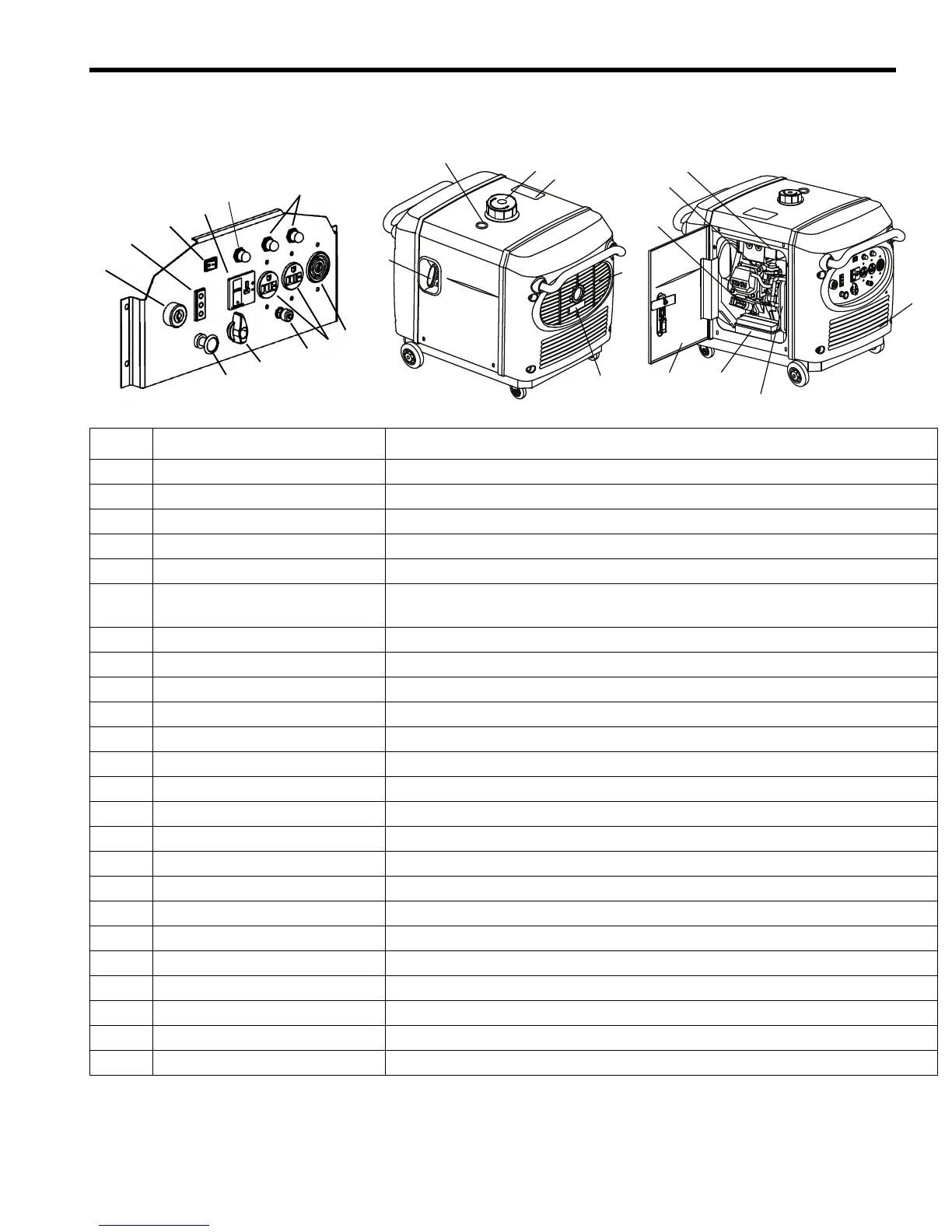

Generator Components
ITEM NOMENCLATURE DESCRIPTION
A Choke Knob Provides proper starting mixture when engine is cold.
B Indicator Panel Low Oil, Overload, and Output LEDs
C Fuel Valve Lever Turns fuel supply to carburetor on and off.
D SMART Throttle Switch Automatically reduces engine speed when loads are shut off or disconnected.
E Ignition Switch Controls the ignition system functions On, Off and operates electric start
F
DC Receptacle
DC Circuit Breaker
Charges 12 Vdc automotive-type batteries.
G 120V AC Twist Lock Receptacle Provides connection for properly rated, 120V AC appliances.
H Ground Terminal Provides ground for non-conductive metal parts and receptacle ground terminals.
I 120V AC Receptacle Provide two connections for properly rated, AC appliances.
J Fuel Level Indicator Provides indication of fuel level.
K Starter Grip Causes the recoil starter to crank the engine when pulled.
L Overload Protection Resets the circuit protector by pushing in the button
M Battery Provides electricity for the starting system
N Air Filter Cleans the air going into the engine to reduce ware on internal components
O Fuel Filler Cap Provides access to the fuel tank
P Air Quality Index Label attached to every certified engine showing the engine emissions
Q Air Exhaust Dispels exhaust air from cooling the engine
R Muffler Reduces noise and emissions from engine combustion
S Service Door Provides access to the working components of the generator
T Oil Dipstick Accesses oil fill and measures amount of oil in engine
U Spark Plug Provides ignition of fuels in the combustion chamber
V Carbon Canister Emissions control device
W Air Intake Provides air to cool the engine
X Overload Restart Resets an overload condition
K
J
O
P
Q
R
S
T
U
V
W
N
M
