GENERAL INFORMATION
1.12

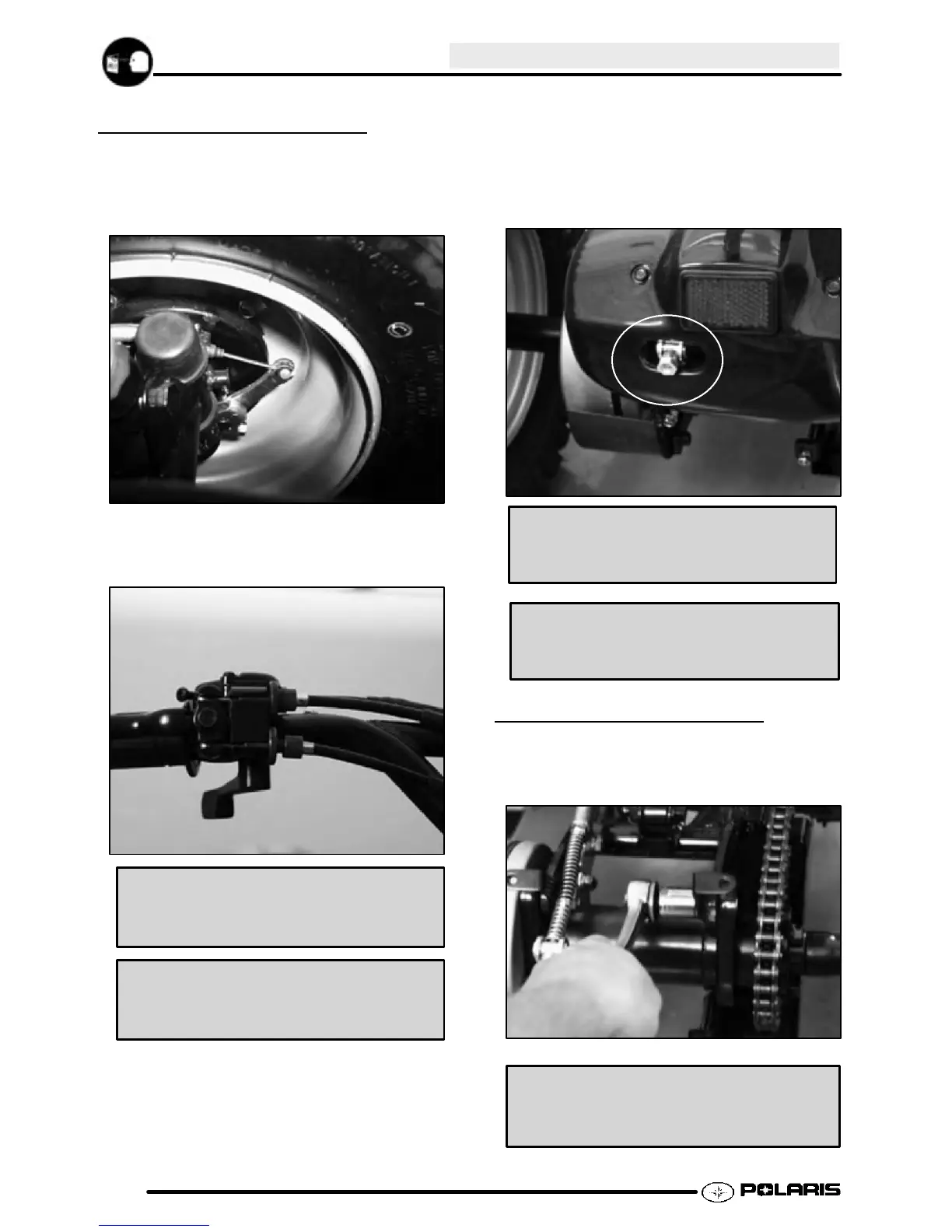

VEHICLE INSPECTION
FRONT BRAKE
1. Each front brake has a cable connected to the right
hand brake lever.
2. Loosen the adjuster nuts at the right hand brake
lever. Turn the cable adjuster until the proper
brake setting is achieved. Tighten nuts.
Front Brake Lever Free Play:
.40-.80I (10-20 mm)
Front Brake Lever Travel:
50 cc= 1 1/8I (28 mm)
90 cc = 1 3/4² (45 mm)
REAR BRAKE
3. Therearbrakeis operated using the left hand brake
lever. To adjust the rear brake setting, turn the
rear brake adjuster nut until brake is set to
specification.
Rear Brake Lever Free Play:
.40-.80I (10-20 mm)
Rear Brake Lever Travel:
50 cc= 1 1/8I (28 mm)
90 cc = 2 1/2² (65 mm)
VEHICLE INSPECTION
CHAIN ADJUSTMENT
1. Remove the rear cover and loosen the four bearing
housing bolts.
Chain Tension Specification:
1/4-1/2² (10-20 mm) Deflection
