Polaris Predator 90 Service Manual

ELECTRICAL
5.12

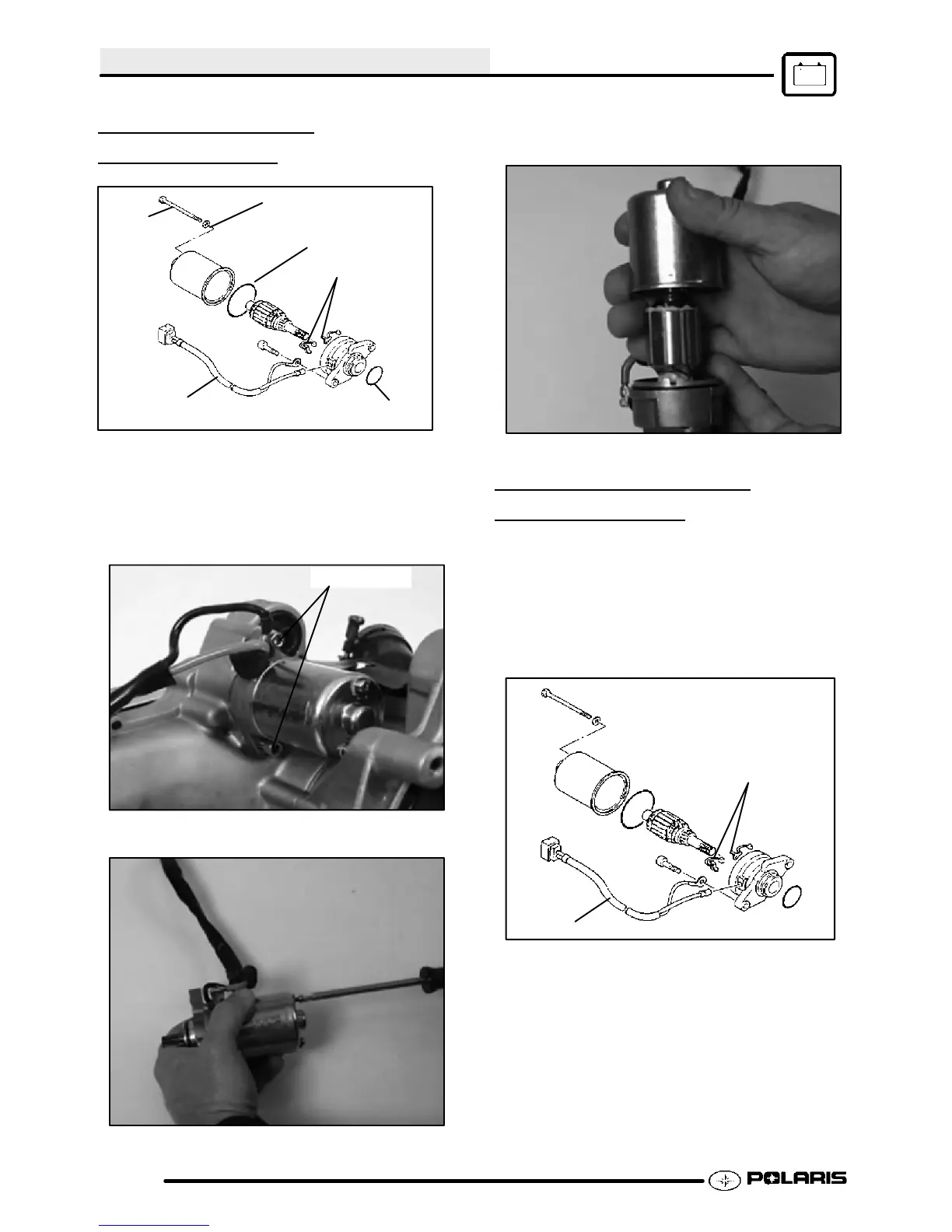

STARTER MOTOR
DISASSEMBL
Y
Bolt
Washer
Oil Ring
Brush Set
Cord
Oil Ring
NOTE: Use only electrical contact cleaner to clean
starter motor parts. Other solvents may leave a
residue or damage internal parts and insulation.
1. Disconnect the negative battery cable. Remove
the starter from the engine.
Starter Bolts
2. Remove the two bolts and washers.
3. Remove housing while holding the armature and
brush holder section together.
BRUSH INSPECTION/
REPLACEMENT
1. Using a digital multitester, measure the
resistance between the cable terminal and the
insulated brush. The reading should be .3 ohms
or less. Measure the resistance between the
cable terminal and brush housing. Make sure the
brush is not touching the case. The reading
should be infinite (no reading).
Brush Set
Cord
2. Inspect the O Rings and replace if damaged.
