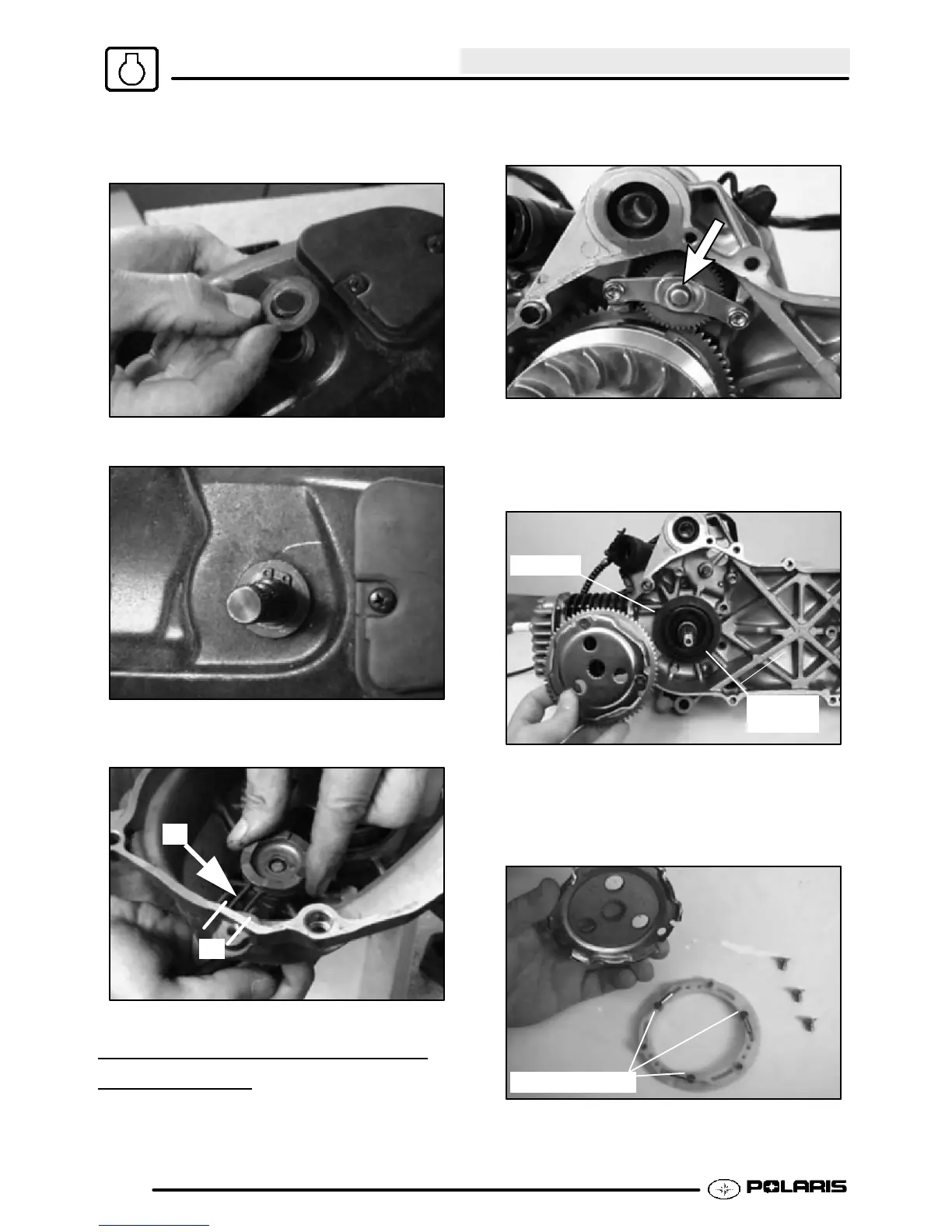

6. Release the cover from the vise. Turn the cover
over while holding the spring and shaft assembly
in place, and install the washer.
7. Install the snap ring.
8. Install the kick pinion with the end of the drag spring
(A) engaged in the slot (B).
A
B
STARTER DRIVE ONE--WAY
INSPECTION
1. Remove the CVT cover, belt and drive clutch
components to gain access to the one--way drive.
2. Remove the idle gear plate, two washers, and idle
gear from the pin shaft.
NOTE: There is one washer on the inside of the idle
gear and one washer on the outside of the idle gear.
3. Remove the washer and needle bearing. Carefully
remove the starter wheel from the crankshaft.
Washer
Needle
Bearing
4. To disassemble the one--way assembly, remove
the three phillips screws from the starter wheel.
Inspect components for signs of wear or sticking.
Replace any components that interfere with
correct operation.
Weight Rollers
NOTE: Use caution when disassembling the starter
wheel, the starter wheel contains springs and pins
